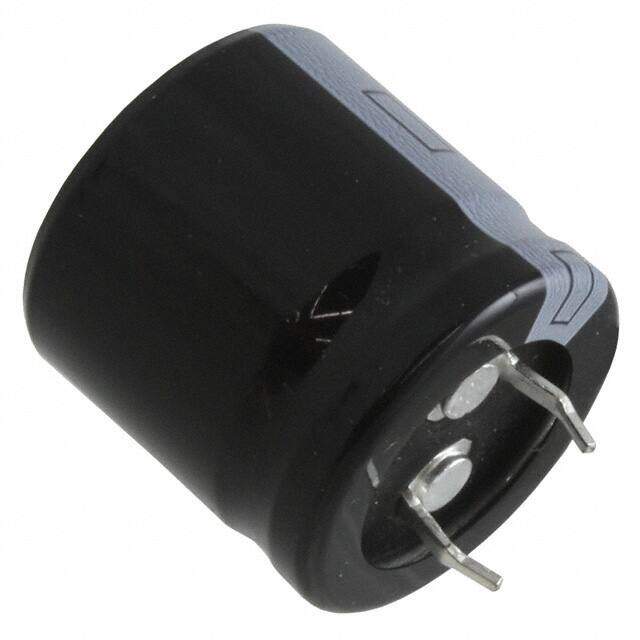

ECO-S2GA680CA
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR TS-HA 400V 68muF ±20% 0.984Dia 25.00mm
PDF
/
Inventory: 3265
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Surface Mount NO
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2005
Series TS-HA
Size / Dimension 0.984Dia 25.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 400V
Capacitance 68μF
Terminal Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 1.95Ohm @ 120Hz
Lead Spacing 0.394 10.00mm
Rated (DC) Voltage (URdc) 400V
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 0.49477mA
Polarization Polar
Tan Delta 0.15
Ripple Current @ Low Frequency 560mA @ 120Hz
Ripple Current @ High Frequency 784mA @ 100kHz
Dimensions
Diameter 25mm
Height Seated (Max) 1.063 27.00mm
Compliance
RoHS Status RoHS Compliant
