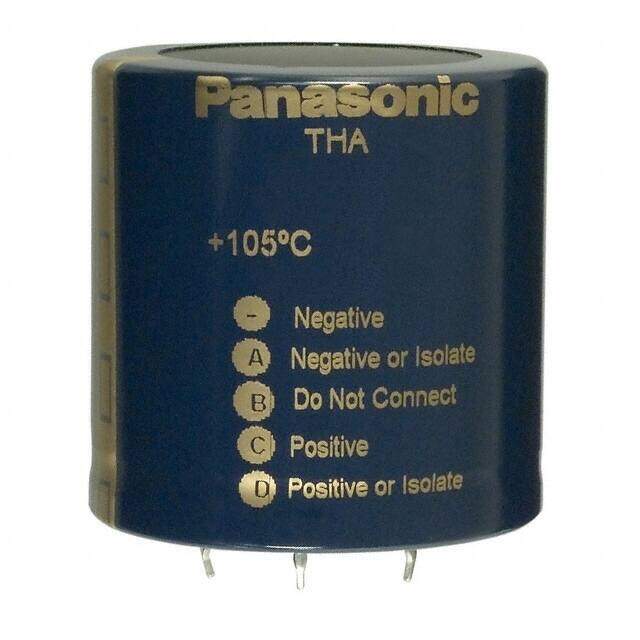

ECE-T2WA471EA image
Favorite
ECE-T2WA471EA image
Favorite
RoHS
/
Package Radial, Can - Snap-In - 4 Lead
Category Capacitors / Aluminum Electrolytic Capacitors
Description Radial Can - Snap-In - 4Lead ALUMINUM ELECTROLYTIC CAPACITOR T-HA 450V 470muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 5192
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Polarization Polar
Test Frequency 120Hz
Ripple Current 1.74A
Leakage Current 1.37968mA
Lifetime @ Temp 3000 Hrs @ 105°C
Voltage 450V
Lead Diameter 800 μm
Lead Spacing 0.886 22.50mm
ESR (Equivalent Series Resistance) 353mOhm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 22.5044mm
Voltage - Rated DC 450V
Capacitance 470μF
Applications General Purpose
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination Snap in
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 1.378Dia 35.00mm
Series T-HA
Published 2005
Packaging Bulk
Operating Temperature -25°C~105°C
Dissipation Factor 15 %
Ripple Current @ High Frequency 2.436A @ 10kHz
Ripple Current @ Low Frequency 1.74A @ 120Hz
Tan Delta 0.15
Life (Hours) 3000 hours

Physical

Dielectric Material ALUMINUM (WET)
Number of Pins 4
Package / Case Radial, Can - Snap-In - 4 Lead
Mounting Type Through Hole
Mount Through Hole

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 1.969 50.00mm
Height 50mm
Diameter 35mm
