Package Radial, Can - Snap-In - 4 Lead
Category Capacitors / Aluminum Electrolytic Capacitors

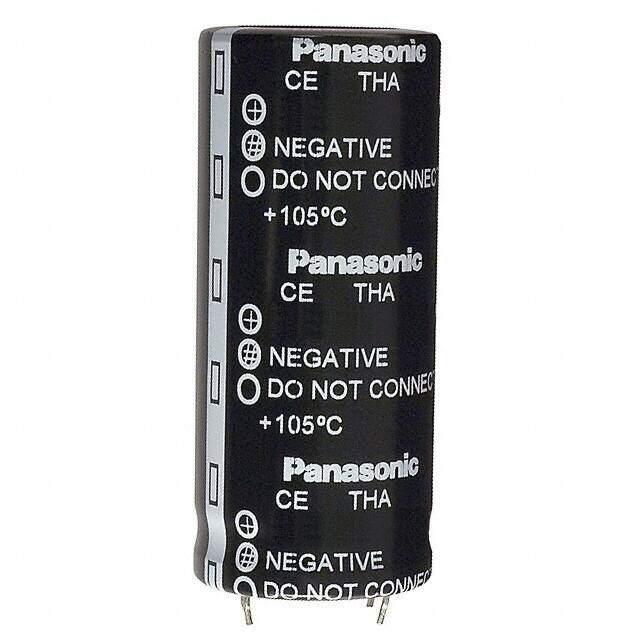

Description Radial Can - Snap-In - 4Lead ALUMINUM ELECTROLYTIC CAPACITOR T-HA 50V 27000muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 992
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In - 4 Lead
Number of Pins 4
Dielectric Material ALUMINUM (WET)

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2005
Series T-HA
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Resistance 15mOhm
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 27000μF
Voltage - Rated DC 50V
Lead Pitch 22.5044mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 15mOhm
Lead Spacing 0.886 22.50mm
Lifetime @ Temp 3000 Hrs @ 105°C
Ripple Current 6.16A
Test Frequency 120Hz
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.3
Ripple Current @ Low Frequency 6.16A @ 120Hz
Ripple Current @ High Frequency 7.084A @ 10kHz
Dissipation Factor 30 %

Dimensions

Diameter 35mm
Height 80mm
Height Seated (Max) 3.150 80.00mm

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
