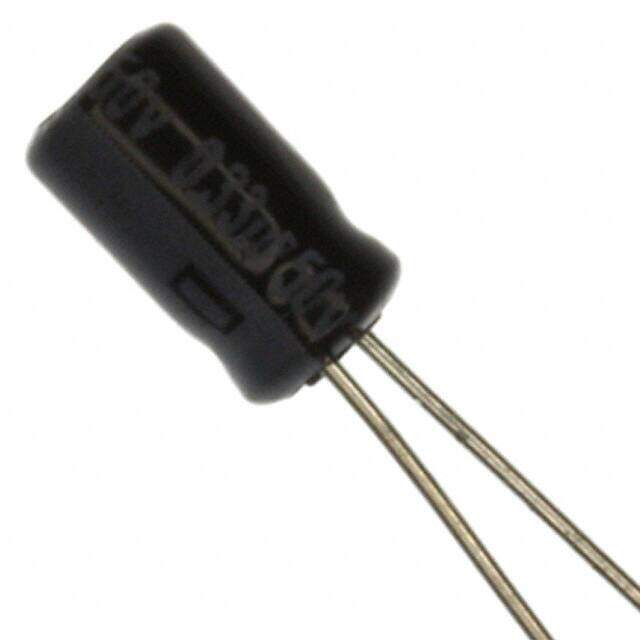

ECE-A1HKAR33
RoHS
/
Package Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR KA 50V 0.33muF ±20% 0.157Dia 4.00mm
PDF
/
Inventory: 7504
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.276 7.00mm
Height 7mm
Diameter 4mm
Technical
Dissipation Factor 0.1 %
Ripple Current @ High Frequency 5.1mA @ 10kHz
Tan Delta 0.1
Life (Hours) 1000 hours
Polarization Polar
Ripple Current 3mA
Lifetime @ Temp 1000 Hrs @ 85°C
Lead Diameter 450 μm
Lead Spacing 0.059 1.50mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 1.5mm
Voltage - Rated DC 50V
Capacitance 0.33μF
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.157Dia 4.00mm
Series KA
Published 2011
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material ALUMINUM (WET)
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
