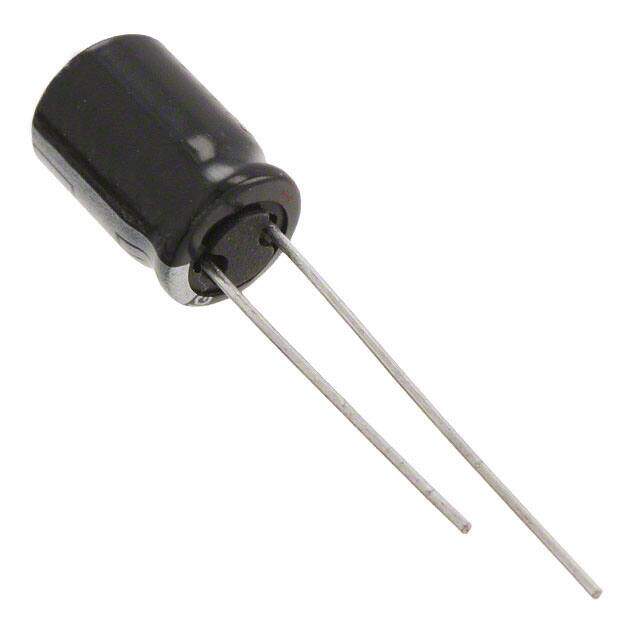

ECA-2GHG2R2B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR NHG 400V 2.2muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.25608
≥100 USD $0.203632
≥500 USD $0.168256
≥1000 USD $0.131437
Inventory: 1163
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.492 12.50mm
Height 11.5mm
Diameter 8mm
Technical
Lead/Base Style Straight
Ripple Current @ High Frequency 45mA @ 100kHz
Ripple Current @ Low Frequency 30mA @ 120Hz
Tan Delta 0.24
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 30mA
Leakage Current 0.0628mA
Lifetime @ Temp 2000 Hrs @ 105°C
Lead Diameter 600 μm
Lead Spacing 0.197 5.00mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 5mm
Reference Standard AEC-Q200
Packing Method AMMO PACK
Voltage - Rated DC 400V
Capacitance 2.2μF
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series NHG
Published 2016
Packaging Tape & Box (TB)
Operating Temperature -25°C~105°C
Physical
Dielectric Material ALUMINUM
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
