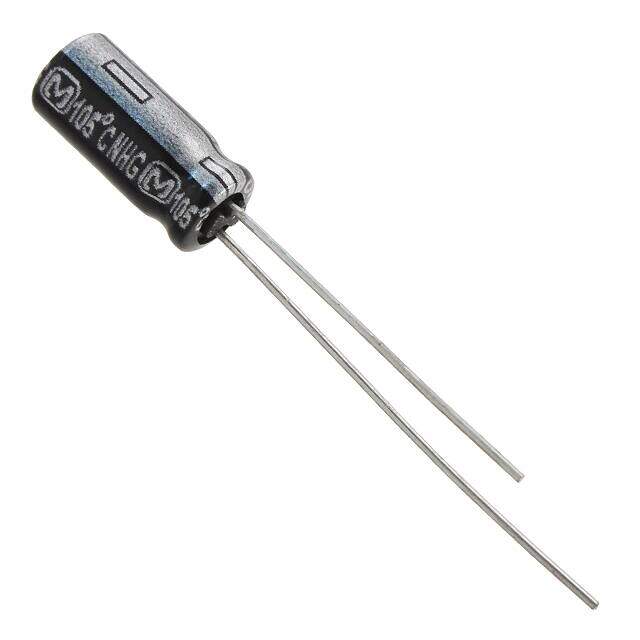

ECA-1HHG2R2I
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR NHG 50V 2.2muF ±20% 0.197Dia 5.00mm
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.2288
≥1 USD $0.2288
≥10 USD $0.15048
≥100 USD $0.105776
≥500 USD $0.08536
≥1000 USD $0.063448
≥3000 USD $0.055519
Inventory: 1238
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Series NHG
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 2.2μF
Voltage - Rated DC 50V
Packing Method AMMO PACK
Reference Standard AEC-Q200
Lead Pitch 2.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.098 2.50mm
Lead Diameter 500 μm
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 3μA
Ripple Current 18mA
Polarization Polar
Life (Hours) 1000 hours
Tan Delta 0.12
Ripple Current @ Low Frequency 18mA @ 120Hz
Ripple Current @ High Frequency 36mA @ 100kHz
Lead/Base Style Straight
Dimensions
Diameter 5mm
Height 11mm
Height Seated (Max) 0.472 12.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
