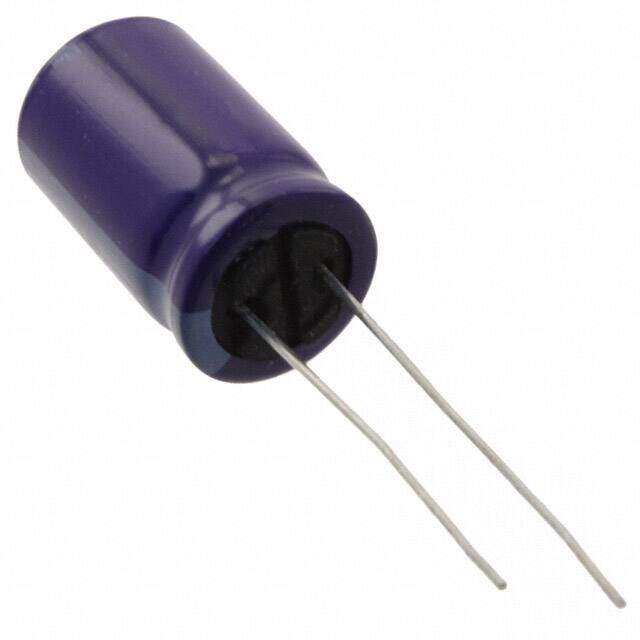

ECA-0JM472
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can M 6.3V 4700muF ±20% 0.492Dia 12.50mm
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.846872
≥1 USD $0.846872
≥10 USD $0.798937
≥100 USD $0.753714
≥500 USD $0.711051
≥1000 USD $0.6708
Inventory: 4007
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series M
Size / Dimension 0.492Dia 12.50mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 4700μF
Voltage - Rated DC 6.3V
Lead Pitch 5mm
Lead Spacing 0.197 5.00mm
Lead Diameter 600 μm
Voltage 6.3V
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 3μA
Ripple Current 1.17A
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 1.17A @ 120Hz
Ripple Current @ High Frequency 1.989A @ 10kHz
Dissipation Factor 0.34 %
Lead/Base Style Straight
Dimensions
Diameter 12.5mm
Height 20mm
Height Seated (Max) 0.866 22.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
