UVZ1E331MPD1TD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

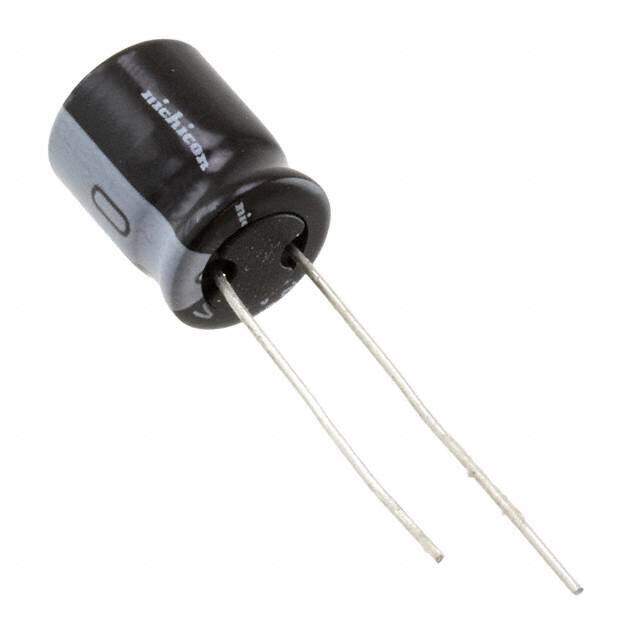

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UVZ 25V 330muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.26312
≥100 USD $0.194128
≥500 USD $0.158048
Inventory: 41315
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Published 1999
Series UVZ
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 25V
Packing Method AMMO PACK
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lead Diameter 600 μm
Voltage 25V
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 247.5μA
Ripple Current 315mA
Polarization Polar
Life (Hours) 1000 hours
Ripple Current @ Low Frequency 315mA @ 120Hz
Dissipation Factor 0.16 %
Lead/Base Style Straight
Dimensions
Diameter 10mm
Height 12.5mm
Height Seated (Max) 0.551 14.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
