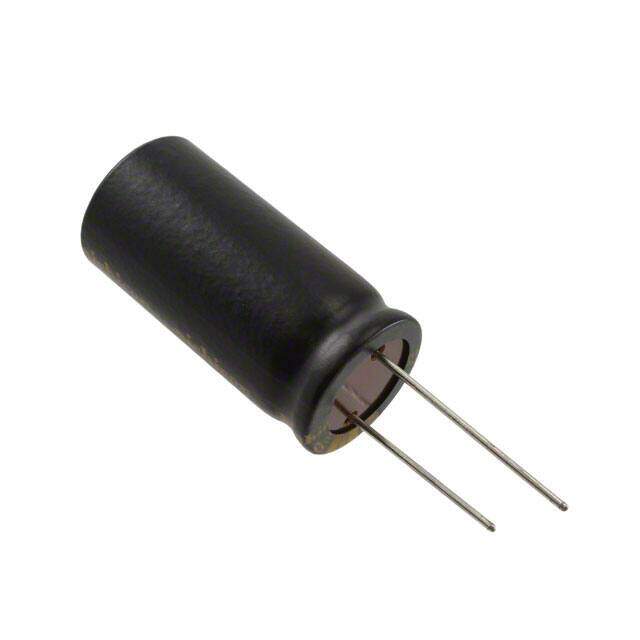

UVZ1E103MRD image
Favorite
UVZ1E103MRD image
Favorite

UVZ1E103MRD

Nichicon
RoHS
RoHS RoHS compliant
Package Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UVZ 25V 10000muF ±20% 0.787Dia 20.00mm
PDF
/
Buying Options
Total Price: USD $3.3
Unit Price: USD $3.3
≥1 USD $3.3
≥10 USD $2.53352
≥100 USD $2.28888
≥500 USD $1.969502
Inventory: 184
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 1.654 42.00mm
Height 40mm
Diameter 20mm

Technical

Dissipation Factor 0.16 %
Ripple Current @ High Frequency 2.4725A @ 10kHz
Ripple Current @ Low Frequency 2.15A @ 120Hz
Tan Delta 0.36
Life (Hours) 1000 hours
Polarization Polar
Ripple Current 2.15A
Leakage Current 7.5mA
Lifetime @ Temp 1000 Hrs @ 105°C
Voltage 25V
Lead Diameter 1 mm
Lead Spacing 0.394 10.00mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 10mm
Voltage - Rated DC 25V
Capacitance 10000μF
HTS Code 8532.22.00
Applications General Purpose
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.787Dia 20.00mm
Series UVZ
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Dielectric Material Aluminium
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 18 Weeks
