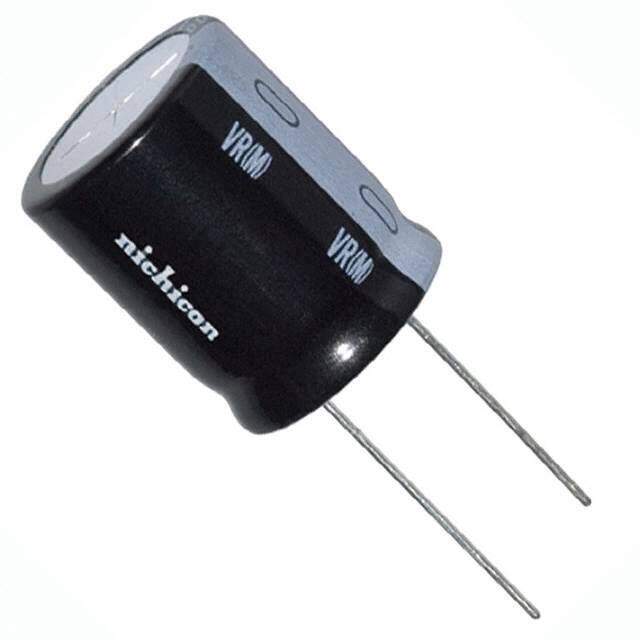

UVR2W470MRD6 image
Favorite
UVR2W470MRD6 image
Favorite

UVR2W470MRD6

Nichicon
RoHS
RoHS RoHS compliant
Package Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UVR 450V 47muF ±20% 0.866Dia 22.00mm
PDF
/
Inventory: 2856
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium

Technical

Operating Temperature -25°C~85°C
Packaging Bulk
Published 2009
Series UVR
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 47μF
Voltage - Rated DC 450V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lead Diameter 1 mm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 946μA
Ripple Current 290mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 290mA @ 120Hz
Ripple Current @ High Frequency 464mA @ 10kHz
Dissipation Factor 0.25 %
Lead/Base Style Straight

Dimensions

Diameter 22mm
Height 30mm
Height Seated (Max) 1.260 32.00mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
