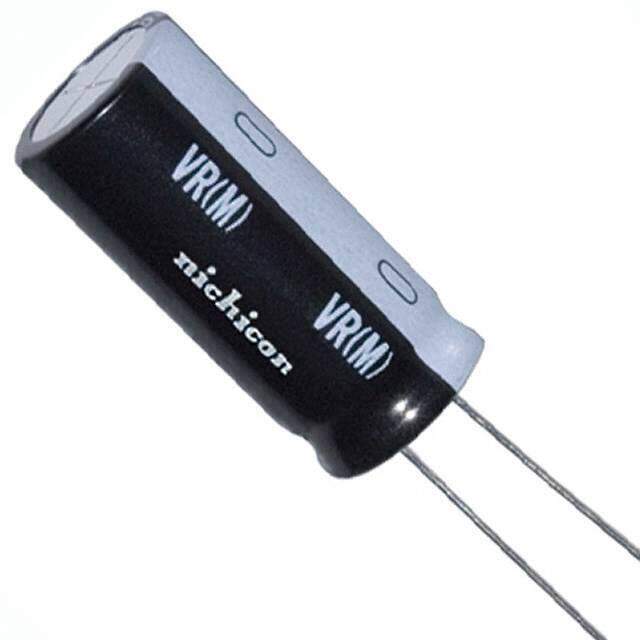

UVR1C153MRD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UVR 16V 15000muF ±20% 0.787Dia 20.00mm
PDF
/
Buying Options
Total Price: USD $2.93
Unit Price: USD $2.9304
≥1 USD $2.9304
≥10 USD $2.25192
≥100 USD $2.034208
≥500 USD $1.75032
≥1000 USD $1.371885
≥3000 USD $1.277276
Inventory: 1128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series UVR
Size / Dimension 0.787Dia 20.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 15000μF
Voltage - Rated DC 16V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 7.2mA
Ripple Current 3.4A
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.48
Ripple Current @ Low Frequency 3.4A @ 120Hz
Ripple Current @ High Frequency 3.91A @ 10kHz
Dissipation Factor 0.2 %
Lead/Base Style Straight
Dimensions
Diameter 20mm
Height 30mm
Height Seated (Max) 1.575 40.00mm
Length 40mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
