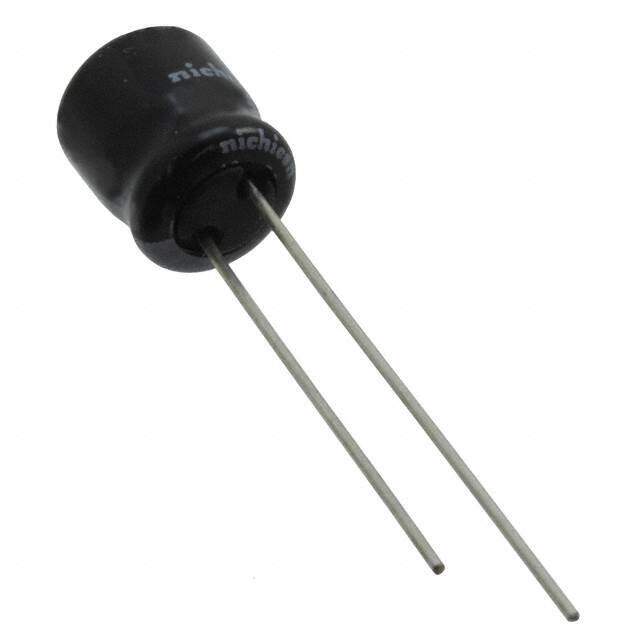

UST1E220MDD1TP
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
UST ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.248Dia 6.30mm ±20% 22muF 25V
PDF
/
Inventory: 9622
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Published 2015
Series UST
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Voltage - Rated 25V
HTS Code 8532.22.00
Capacitance 22μF
Packing Method AMMO PACK
Terminal Pitch 2.5mm
Lead Pitch 2.4892mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.098 2.50mm
Rated (DC) Voltage (URdc) 25V
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 0.0055mA
Ripple Current 51mA
Polarization Polar
Life (Hours) 1000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 51mA @ 120Hz
Ripple Current @ High Frequency 76.5mA @ 10kHz
Dimensions
Diameter 6.3mm
Height Seated (Max) 0.315 8.00mm
Length 7mm
Compliance
RoHS Status ROHS3 Compliant
