URS1E331MPD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

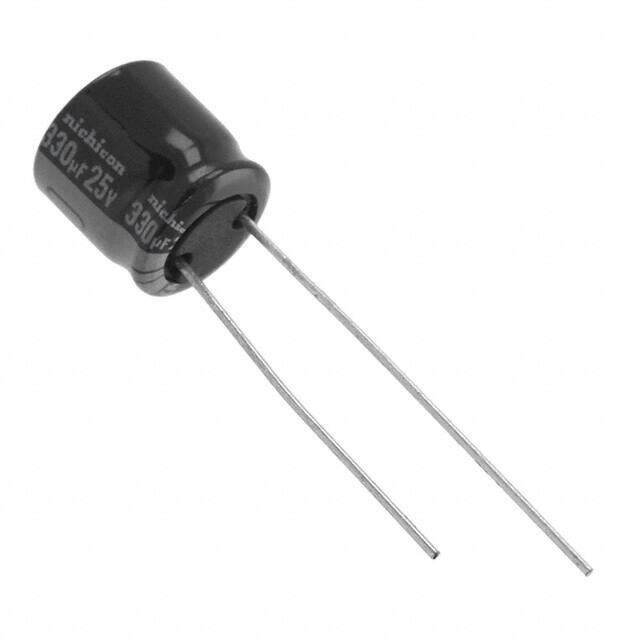

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR URS 25V 330muF ±20% 0.394Dia 10.00mm
PDF
/
Inventory: 5749
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2008
Series URS
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 330μF
Voltage - Rated DC 25V
Packing Method TAPE
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 247.5μA
Ripple Current 380mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 380mA @ 120Hz
Ripple Current @ High Frequency 570mA @ 10kHz
Dissipation Factor 0.16 %
Dimensions
Diameter 10mm
Height 9mm
Height Seated (Max) 0.354 9.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
