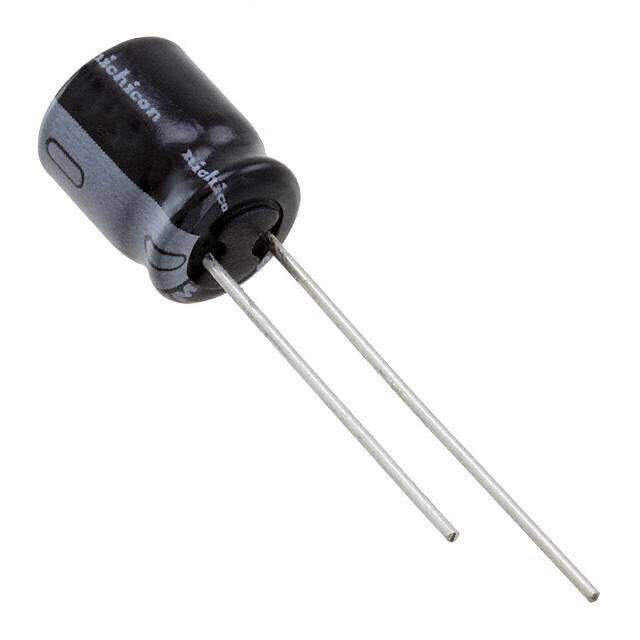

URS1C221MPD1TA
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR URS 16V 220muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.336327
≥1 USD $0.336327
≥10 USD $0.317299
≥100 USD $0.299336
≥500 USD $0.282391
≥1000 USD $0.266404
Inventory: 1212
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Dielectric Material ALUMINUM
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Box (TB)
Published 2009
Series URS
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 220μF
Voltage - Rated DC 16V
Terminal Pitch 5mm
Lead Pitch 3.5052mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 4μA
Ripple Current 290mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 290mA @ 120Hz
Ripple Current @ High Frequency 435mA @ 10kHz
Dissipation Factor 0.2 %
Lead/Base Style Straight
Dimensions
Diameter 8mm
Height Seated (Max) 0.413 10.50mm
Length 9mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
