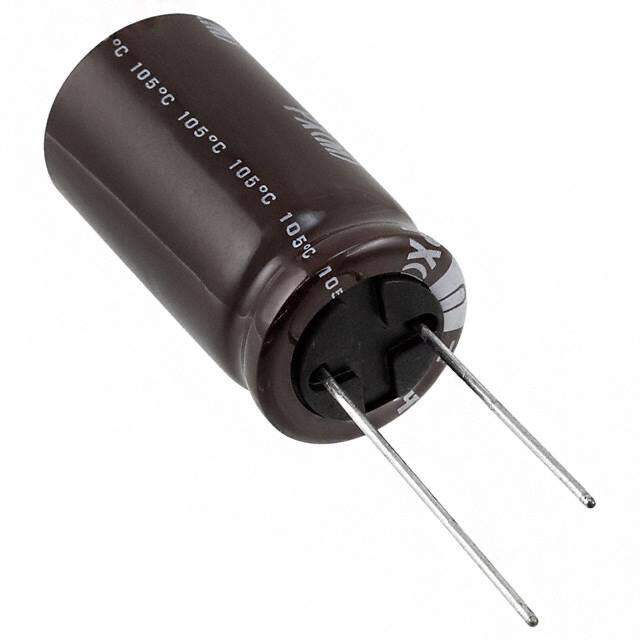

UPX1E102MHD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPX 25V 1000muF ±20% 0.630Dia 16.00mm
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.44144
≥100 USD $1.324224
≥500 USD $0.993168
≥1000 USD $0.882834
≥3000 USD $0.772473
Inventory: 1092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series UPX
Size / Dimension 0.630Dia 16.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 1000μF
Voltage - Rated DC 25V
Lead Pitch 7.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Polarity POLARIZED
Lead Spacing 0.295 7.50mm
Lead Diameter 800 μm
Voltage 25V
Lifetime @ Temp 20000 Hrs @ 105°C
Leakage Current 750μA
Ripple Current 1.68A
Life (Hours) 20000 hours
Ripple Current @ Low Frequency 1.26A @ 120Hz
Ripple Current @ High Frequency 1.68A @ 100kHz
Dissipation Factor 0.14 %
Lead/Base Style Straight
Dimensions
Diameter 16mm
Height 31.5mm
Height Seated (Max) 1.299 33.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
