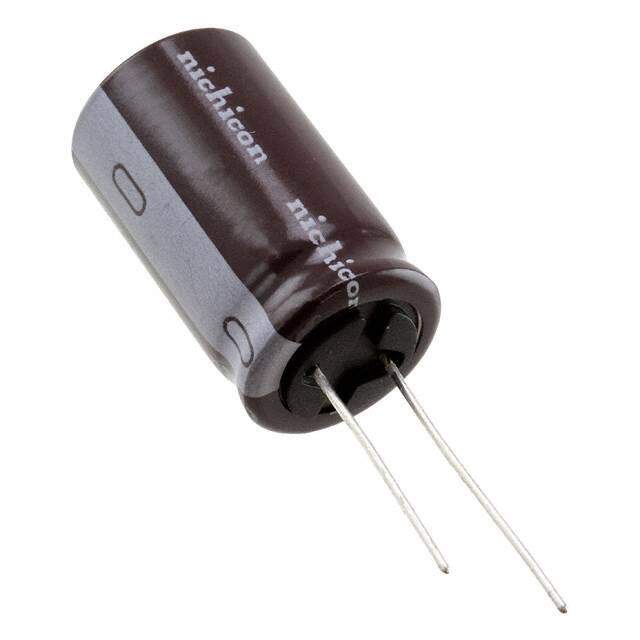

UPT2D221MHD6
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPT 200V 220muF ±20% 0.709Dia 18.00mm
PDF
/
Inventory: 7184
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 1.299 33.00mm
Height 31.5mm
Diameter 18mm
Technical
Ripple Current @ High Frequency 1.296A @ 10kHz
Ripple Current @ Low Frequency 810mA @ 120Hz
Tan Delta 0.12
Life (Hours) 5000 hours
Polarization Polar
Ripple Current 810mA
Leakage Current 2.65mA
Lifetime @ Temp 5000 Hrs @ 105°C
Lead Spacing 0.295 7.50mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 7.5mm
Voltage - Rated DC 200V
Capacitance 220μF
HTS Code 8532.22.00
Applications General Purpose
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature General Purpose
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.709Dia 18.00mm
Series UPT
Published 2015
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
Dielectric Material ALUMINUM (WET)
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 19 Weeks
