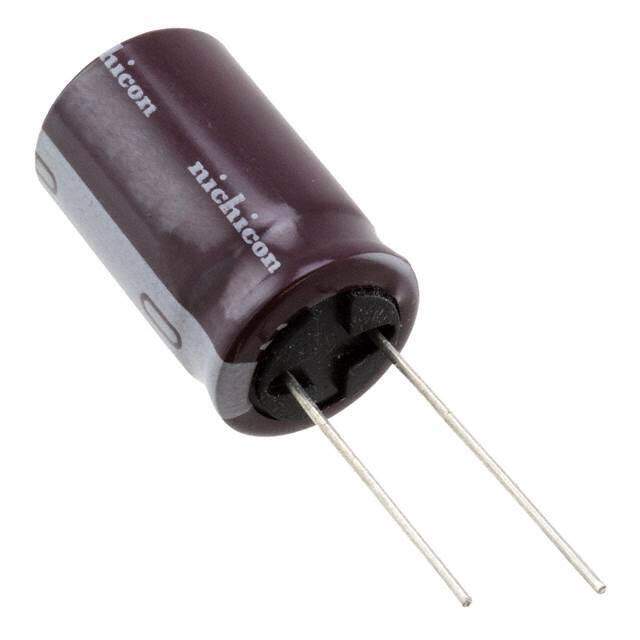

UPS2A331MHD1TN
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPS 100V 330muF ±20% 0.630Dia 16.00mm
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.3112
≥1 USD $1.3112
≥10 USD $0.98472
≥100 USD $0.898656
≥500 USD $0.736208
Inventory: 776
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Dielectric Material ALUMINUM
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2015
Series UPS
Size / Dimension 0.630Dia 16.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 100V
HTS Code 8532.22.00
Capacitance 330μF
Terminal Pitch 7.5mm
Lead Pitch 7.493mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.295 7.50mm
Rated (DC) Voltage (URdc) 100V
Lifetime @ Temp 3000 Hrs @ 105°C
Ripple Current 1.08A
Polarization Polar
Life (Hours) 3000 hours
Impedance 90mOhm
Ripple Current @ Low Frequency 766.8mA @ 120Hz
Ripple Current @ High Frequency 1.08A @ 100kHz
Dimensions
Diameter 16mm
Height Seated (Max) 1.063 27.00mm
Length 25mm
Compliance
RoHS Status ROHS3 Compliant
