UPJ2D4R7MPD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

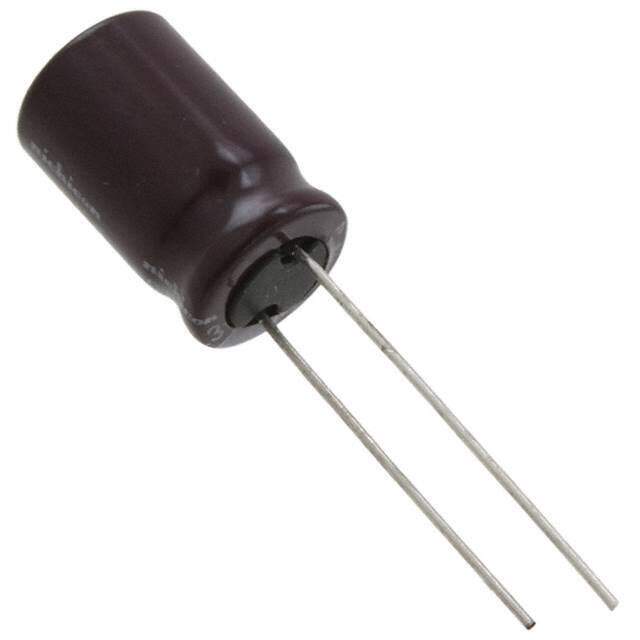

UPJ ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 4.7muF 200V
PDF
/
Inventory: 8541
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2012
Series UPJ
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 4.7μF
Voltage - Rated DC 200V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 134μA
Ripple Current 60mA
Polarization Polar
Life (Hours) 5000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 60mA @ 120Hz
Ripple Current @ High Frequency 96mA @ 10kHz
Dimensions
Diameter 10mm
Height 15mm
Height Seated (Max) 0.650 16.50mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
