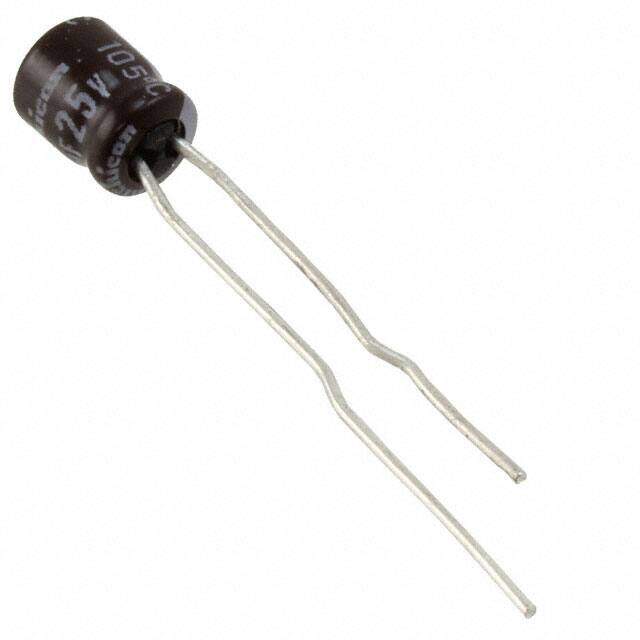

UMF1E4R7MDD1TP
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UMF 25V 4.7muF ±20% 0.157Dia 4.00mm
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.364183
≥1 USD $0.364183
≥10 USD $0.343574
≥100 USD $0.324121
≥500 USD $0.305781
≥1000 USD $0.288469
Inventory: 4285
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Dielectric Material ALUMINUM
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Published 2015
Series UMF
Size / Dimension 0.157Dia 4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
HTS Code 8532.22.00
Capacitance 4.7μF
Voltage - Rated DC 25V
Lead Pitch 1.4986mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.059 1.50mm
Lead Diameter 450 μm
Lifetime @ Temp 1000 Hrs @ 105°C
Ripple Current 50mA
Polarization Polar
Life (Hours) 1000 hours
Impedance 5Ohm
Ripple Current @ Low Frequency 25mA @ 120Hz
Ripple Current @ High Frequency 50mA @ 100kHz
Dimensions
Diameter 5mm
Height Seated (Max) 0.236 6.00mm
Compliance
RoHS Status ROHS3 Compliant
