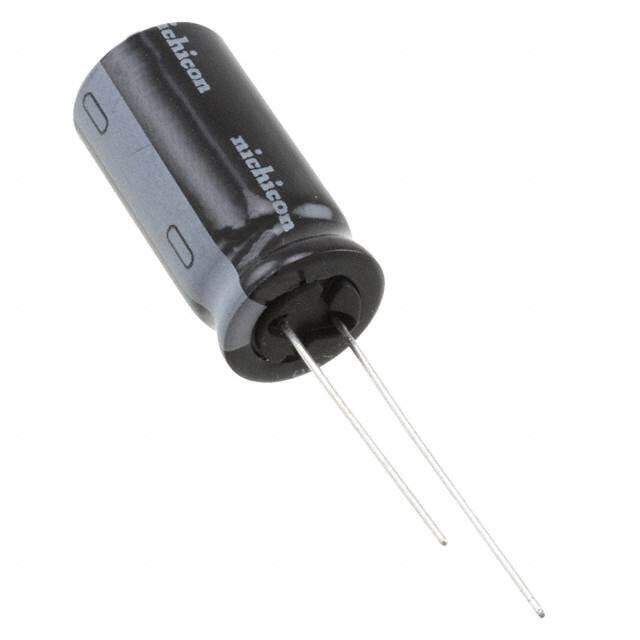

UHW0J472MHD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UHW 6.3V 4700muF ±20% 0.492Dia 12.50mm
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.4168
≥1 USD $1.4168
≥10 USD $1.06216
≥100 USD $0.96888
≥500 USD $0.79376
≥1000 USD $0.596279
≥3000 USD $0.559011
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2015
Series UHW
Size / Dimension 0.492Dia 12.50mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 6.3V
HTS Code 8532.22.00
Capacitance 4700μF
Lead Pitch 5.0038mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 10000 Hrs @ 105°C
Ripple Current 3.2A
Polarization Polar
Life (Hours) 10000 hours
Impedance 15mOhm
Ripple Current @ Low Frequency 2.56A @ 120Hz
Ripple Current @ High Frequency 3.2A @ 100kHz
Dimensions
Height Seated (Max) 1.063 27.00mm
Compliance
RoHS Status ROHS3 Compliant

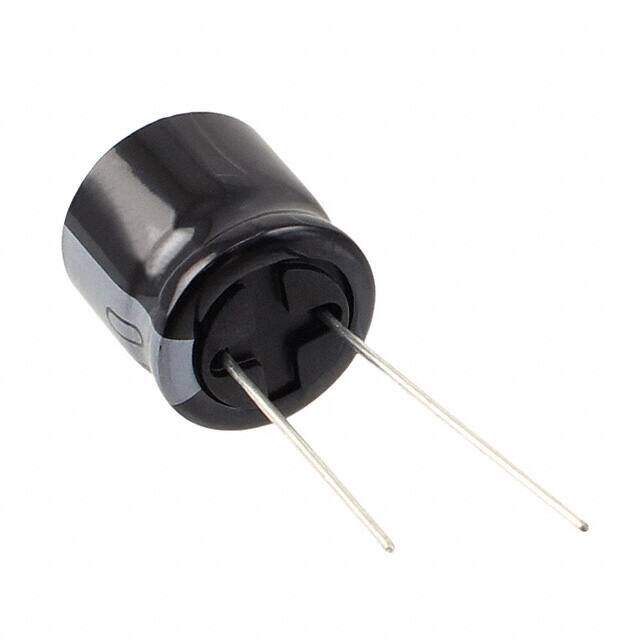

Alternative Model
