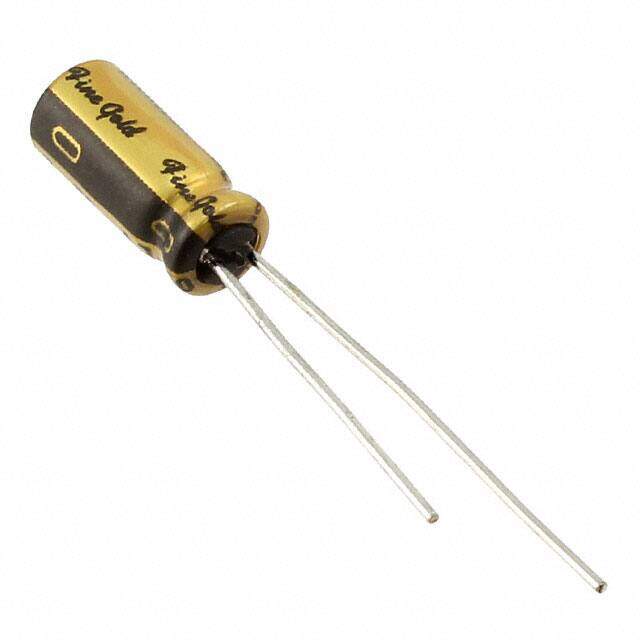

UFG1HR33MDM

Nichicon
RoHS
RoHS RoHS compliant
Package Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UFG 50V 0.33muF ±20% 0.197Dia 5.00mm
PDF
/
Inventory: 7319
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.492 12.50mm
Height 11mm
Diameter 5mm

Technical

Dissipation Factor 0.1 %
Ripple Current @ High Frequency 7.2mA @ 10kHz
Ripple Current @ Low Frequency 3.6mA @ 120Hz
Tan Delta 0.1
Life (Hours) 1000 hours
Polarization Polar
Ripple Current 3.6mA
Leakage Current 3μA
Lifetime @ Temp 1000 Hrs @ 85°C
Voltage 50V
Lead Diameter 600 μm
Lead Spacing 0.079 2.00mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 2mm
Packing Method TAPE
Capacitance 0.33μF
HTS Code 8532.22.00
Applications Audio
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.197Dia 5.00mm
Series UFG
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Dielectric Material ALUMINUM (WET)
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
