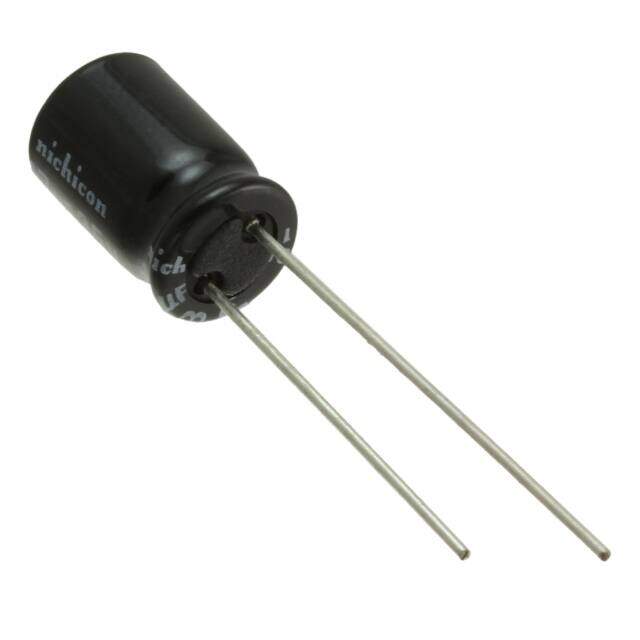

UEP1A220MDD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
UEP ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.197Dia 5.00mm ±20% 22muF 10V
PDF
/
Inventory: 4357
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2015
Series UEP
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00
Capacitance 22μF
Voltage - Rated DC 10V
Terminal Pitch 2mm
Lead Pitch 2.0066mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Polarity Bipolar
Lead Spacing 0.079 2.00mm
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 6.6μA
Ripple Current 42mA
Polarization Bi-Polar
Life (Hours) 1000 hours
Tan Delta 0.24
Dimensions
Diameter 5mm
Height Seated (Max) 0.492 12.50mm
Length 11mm
Compliance
RoHS Status ROHS3 Compliant
