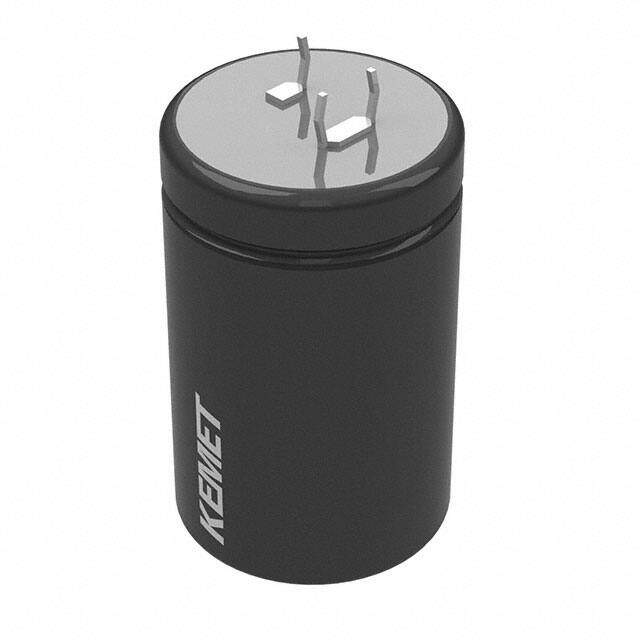

ALC70F182EF250
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In - 3 Lead
Category Capacitors / Aluminum Electrolytic Capacitors
Description
SNAP-IN HIGH CV 85C 1800UF 250V
PDF
/
Inventory: 2439
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 32 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In - 3 Lead
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series ALC70
Size / Dimension 1.575Dia 40.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Applications General Purpose
Voltage - Rated 250V
Capacitance 1800μF
ESR (Equivalent Series Resistance) 111mOhm @ 100Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 18000 Hrs @ 85°C
Polarization Polar
Impedance 67mOhm
Ripple Current @ Low Frequency 4.53A @ 100Hz
Ripple Current @ High Frequency 8.11A @ 10kHz
Dimensions
Height Seated (Max) 2.047 52.00mm
Compliance
RoHS Status ROHS3 Compliant
