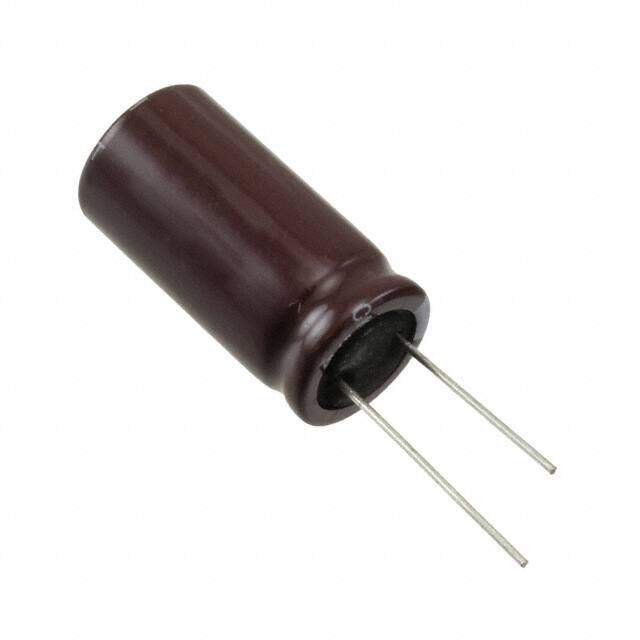

688CKE025M
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR CKE 25V 6800muF ±20% 0.709Dia 18.00mm
PDF
/
Inventory: 9560
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2010
Series CKE
Size / Dimension 0.709Dia 18.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 6800μF
Voltage - Rated DC 25V
Lead Pitch 7.493mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 63.4mOhm @ 120Hz
Lead Spacing 0.295 7.50mm
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 5.1mA
Ripple Current 2.308A
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.27
Ripple Current @ Low Frequency 2.17A @ 120Hz
Ripple Current @ High Frequency 3.038A @ 100kHz
Dimensions
Diameter 18mm
Height 35.5mm
Height Seated (Max) 1.437 36.50mm
Compliance
RoHS Status ROHS3 Compliant

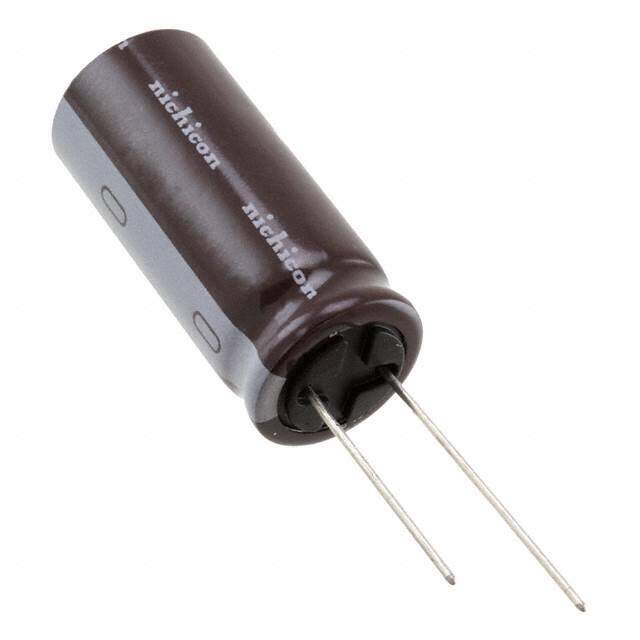

Alternative Model
