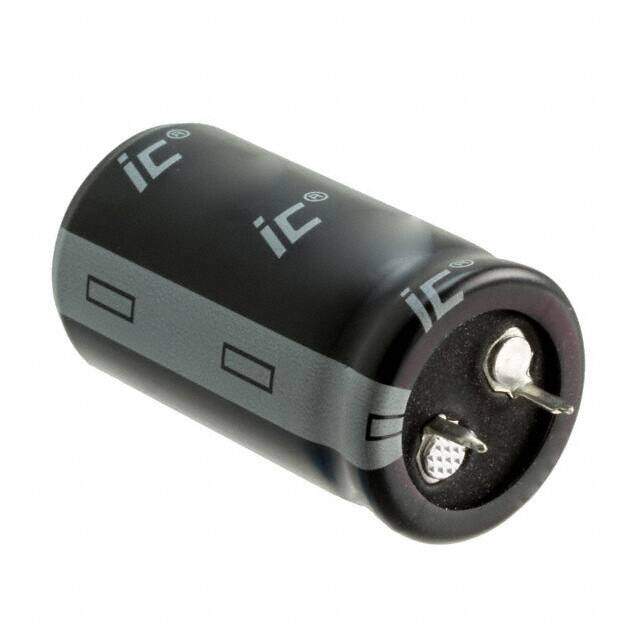

477LBA200M2CD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR LBA 200V 470muF ±20% 0.984Dia 25.00mm
PDF
/
Inventory: 6893
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2016
Series LBA
Size / Dimension 0.984Dia 25.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Voltage - Rated 200V
Capacitance 470μF
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 529.11mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Rated (DC) Voltage (URdc) 200V
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 2mA
Ripple Current 1.91A
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.1
Ripple Current @ Low Frequency 1.91A @ 120Hz
Ripple Current @ High Frequency 2.8077A @ 10kHz
Custom Capabilities Capacitance Tolerance
Dimensions
Diameter 25mm
Height Seated (Max) 1.260 32.00mm
Length 30mm
Compliance
RoHS Status ROHS3 Compliant

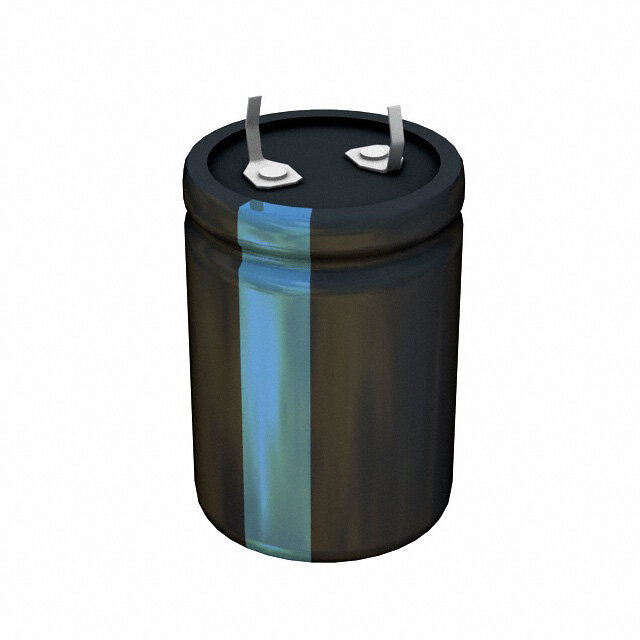

Alternative Model
