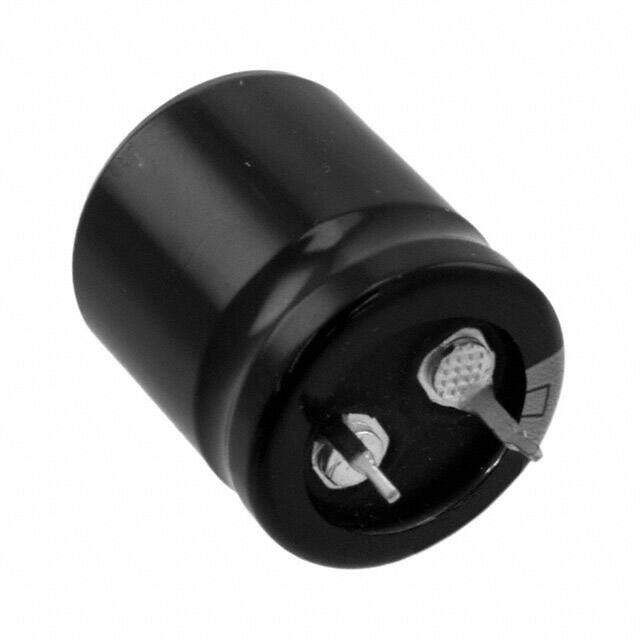

228LBA035M2CA image
Favorite
228LBA035M2CA image
Favorite

228LBA035M2CA

Illinois Capacitor
RoHS
RoHS RoHS compliant
Package Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR LBA 35V 2200muF ±20% 0.984Dia 25.00mm
PDF
/
Inventory: 7870
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.866 22.00mm

Technical

Ripple Current @ High Frequency 2.125A @ 10kHz
Ripple Current @ Low Frequency 1.7A @ 120Hz
Tan Delta 0.25
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 1.7A
Leakage Current 1.54mA
Lifetime @ Temp 2000 Hrs @ 85°C
Rated (DC) Voltage (URdc) 35V
Lead Spacing 0.394 10.00mm
ESR (Equivalent Series Resistance) 301.43mOhm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 10.0076mm
Capacitance 2200μF
Voltage - Rated 35V
Applications General Purpose
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.984Dia 25.00mm
Series LBA
Published 2016
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Dielectric Material ALUMINUM (WET)
Package / Case Radial, Can - Snap-In
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 22 Weeks
