WBR60-250A
RoHS
RoHS compliant
RoHS compliantPackage Axial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

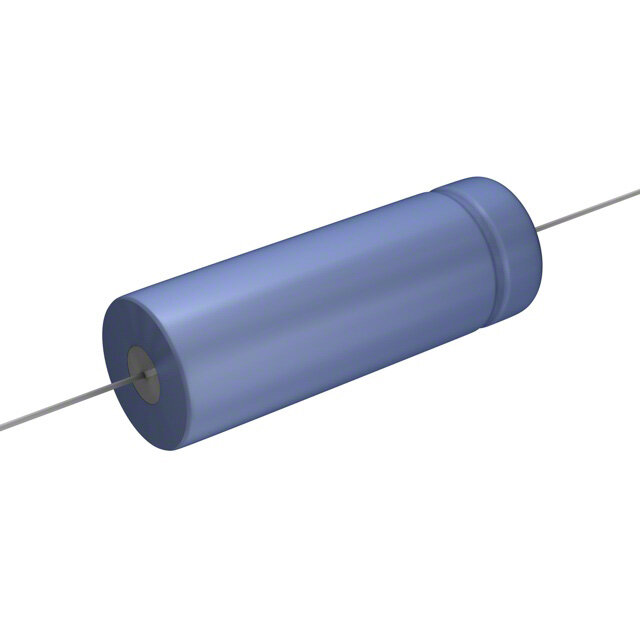

Axial Can ALUMINUM ELECTROLYTIC CAPACITOR WBR 250V 60muF -10% +100% 0.650Diax1.830L 16.51mmx46.48mm
PDF
/
Inventory: 4154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series WBR
Size / Dimension 0.650Diax1.830L 16.51mmx46.48mm
Tolerance -10% +100%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Axial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 60μF
Voltage - Rated DC 250V
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 4.2Ohm @ 120Hz
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 0.47mA
Ripple Current 180mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 180mA @ 120Hz
Ripple Current @ High Frequency 234mA @ 100kHz
Dimensions
Diameter 16.51mm
Height 46.482mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
