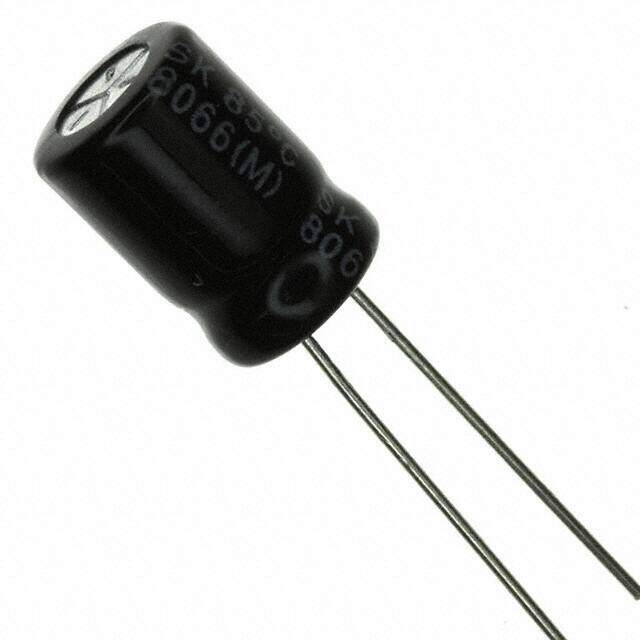

SK2R2M400ST image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description Radial Can ALUMINUM ELECTROLYTIC CAPACITOR SK 400V 2.2muF ±20% 0.315Dia 8.00mm
PDF
/
Inventory: 5501
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height Seated (Max) 0.512 13.00mm
Height 11mm
Diameter 8mm

Technical

Ripple Current @ Low Frequency 28mA @ 120Hz
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 28mA
Lifetime @ Temp 2000 Hrs @ 85°C
Lead Spacing 0.138 3.50mm
ESR (Equivalent Series Resistance) 120.63Ohm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 3.5052mm
Terminal Pitch 3.5mm
Voltage - Rated DC 400V
Capacitance 2.2μF
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series SK
Published 2009
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Dielectric Material Aluminium
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
