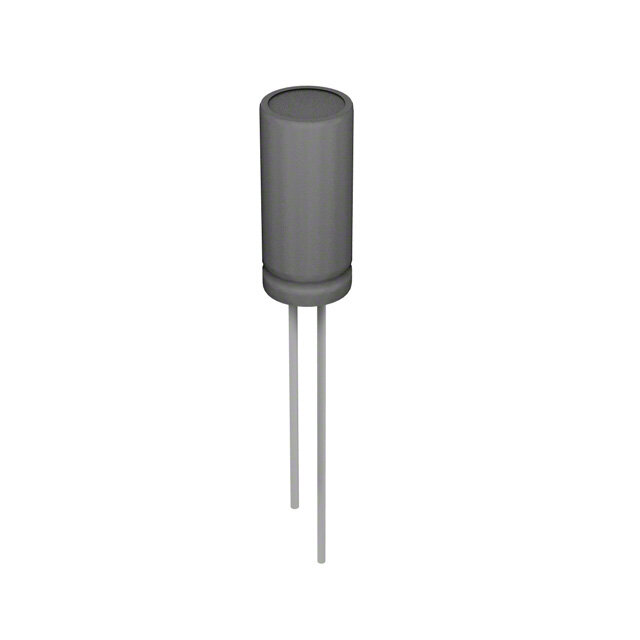

SH2R2M100ST
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR SH 100V 2.2muF ±20% 0.197Dia 5.00mm
PDF
/
Inventory: 7589
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2007
Series SH
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
Capacitance 2.2μF
Voltage - Rated DC 100V
Terminal Pitch 2mm
Lead Pitch 2.0066mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 60.29Ohm @ 120Hz
Lead Spacing 0.079 2.00mm
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.0052mA
Ripple Current 22mA
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.1
Ripple Current @ Low Frequency 22mA @ 120Hz
Ripple Current @ High Frequency 30.8mA @ 10kHz
Dimensions
Diameter 5mm
Height 11mm
Height Seated (Max) 0.433 11.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
