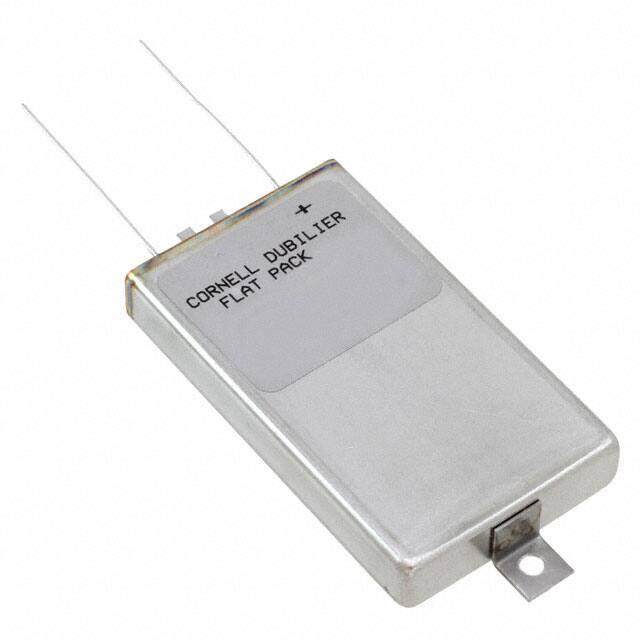

MLS383M010EB0A
RoHS
/
Package FlatPack, Tabbed
Category Capacitors / Aluminum Electrolytic Capacitors
Description
FlatPack Tabbed ALUMINUM ELECTROLYTIC CAPACITOR MLS 10V 38000muF ±20% 3.000Lx1.750W 76.20mmx44.45mm
PDF
/
Buying Options
Total Price: USD $167.35
Unit Price: USD $167.347486
≥1 USD $167.347486
≥200 USD $64.761418
≥500 USD $62.486163
≥1000 USD $61.361007
Inventory: 1903
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case FlatPack, Tabbed
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2016
Series MLS
Size / Dimension 3.000Lx1.750W 76.20mmx44.45mm
Tolerance ±20%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Applications General Purpose
HTS Code 8532.22.00.55
Capacitance 38000μF
Voltage - Rated DC 10V
Lead Pitch 25.4mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 31mOhm @ 120Hz
Lead Spacing 1.000 25.40mm
Lifetime @ Temp 10000 Hrs @ 85°C
Leakage Current 2nA
Ripple Current 31.5A
Polarization Polar
Life (Hours) 10000 hours
Ripple Current @ Low Frequency 31.5A @ 120Hz
Ripple Current @ High Frequency 33.8A @ 20kHz
Dimensions
Height 12.7mm
Height Seated (Max) 0.500 12.70mm
Length 44.45mm
Compliance
RoHS Status Non-RoHS Compliant
