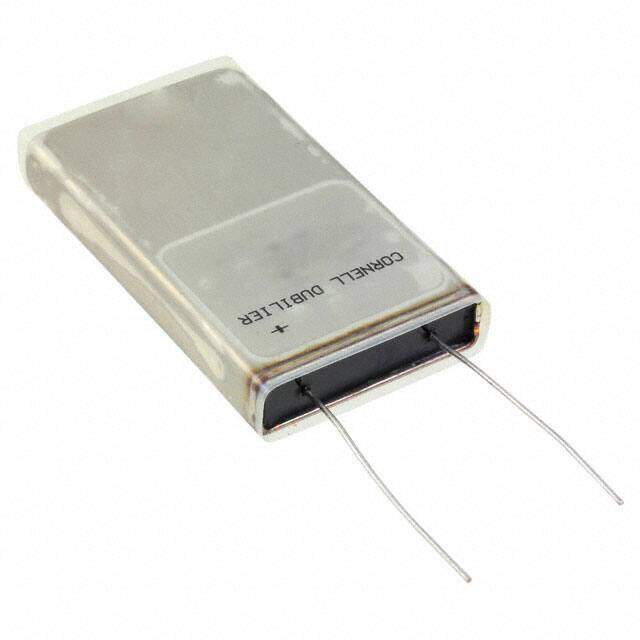

MLS332M060EB1C
RoHS
/
Package FlatPack
Category Capacitors / Aluminum Electrolytic Capacitors
Description
FlatPack ALUMINUM ELECTROLYTIC CAPACITOR MLS 60V 3300muF ±20% 3.000Lx1.750W 76.20mmx44.45mm
PDF
/
Buying Options
Total Price: USD $167.35
Unit Price: USD $167.347486
≥1 USD $167.347486
≥200 USD $64.761418
≥500 USD $62.486163
≥1000 USD $61.361007
Inventory: 5096
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Length 44.45mm
Height Seated (Max) 0.500 12.70mm
Height 12.7mm
Technical
Ripple Current @ High Frequency 18.2A @ 20kHz
Ripple Current @ Low Frequency 15.3A @ 120Hz
Life (Hours) 10000 hours
Polarization Polar
Ripple Current 15.3A
Leakage Current 2nA
Lifetime @ Temp 10000 Hrs @ 85°C
Lead Spacing 1.000 25.40mm
ESR (Equivalent Series Resistance) 44mOhm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 25.4mm
Voltage - Rated DC 60V
Capacitance 3300μF
HTS Code 8532.22.00.55
Applications General Purpose
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±20%
Size / Dimension 3.000Lx1.750W 76.20mmx44.45mm
Series MLS
Published 2016
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Dielectric Material ALUMINUM (WET)
Terminal Shape WIRE
Package / Case FlatPack
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 28 Weeks
