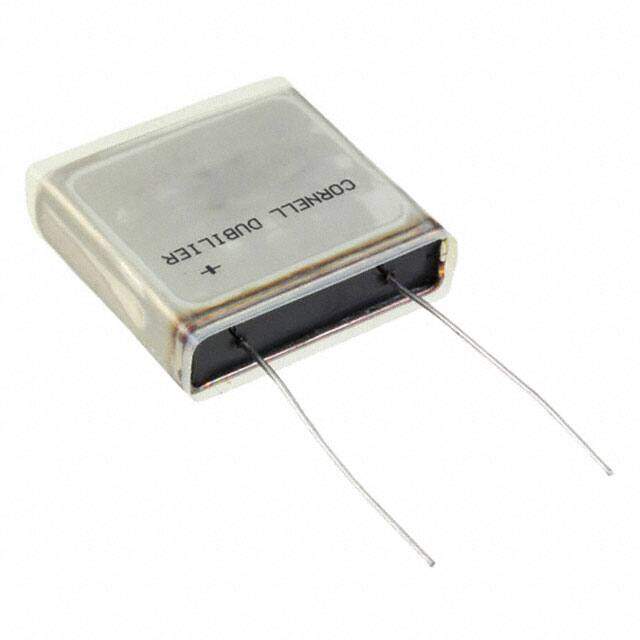

MLS331M250EA1C
RoHS
/
Package FlatPack
Category Capacitors / Aluminum Electrolytic Capacitors
Description
FlatPack ALUMINUM ELECTROLYTIC CAPACITOR MLS 250V 330muF ±20% 2.000Lx1.750W 50.80mmx44.45mm
PDF
/
Buying Options
Total Price: USD $144.54
Unit Price: USD $144.543726
≥1 USD $144.543726
≥200 USD $55.936105
≥500 USD $53.970693
≥1000 USD $52.999147
Inventory: 6729
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case FlatPack
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2016
Series MLS
Size / Dimension 2.000Lx1.750W 50.80mmx44.45mm
Tolerance ±20%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Applications General Purpose
HTS Code 8532.22.00.55
Capacitance 330μF
Voltage - Rated DC 250V
Lead Pitch 25.4mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 399mOhm @ 120Hz
Lead Spacing 1.000 25.40mm
Lifetime @ Temp 10000 Hrs @ 85°C
Leakage Current 2nA
Ripple Current 5A
Polarization Polar
Life (Hours) 10000 hours
Ripple Current @ Low Frequency 5A @ 120Hz
Ripple Current @ High Frequency 6.3A @ 20kHz
Dimensions
Height 12.7mm
Height Seated (Max) 0.500 12.70mm
Length 44.45mm
Compliance
RoHS Status Non-RoHS Compliant
