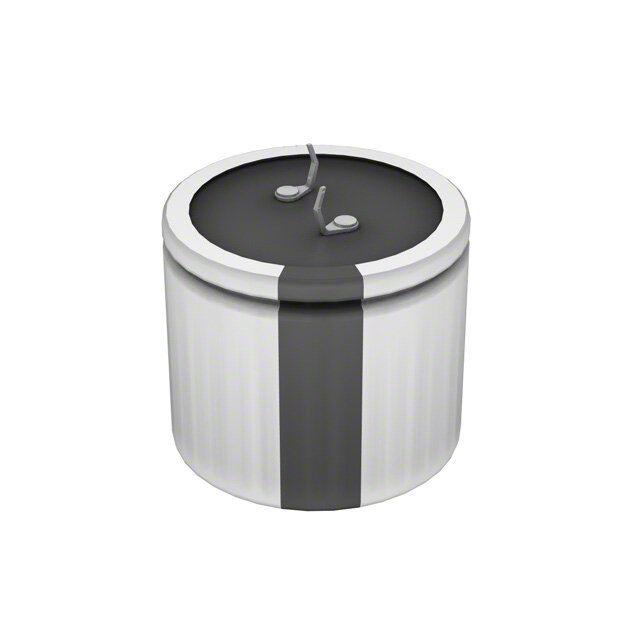

LPX331M400H3P3
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR LPX 400V 330muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 1963
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series LPX
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish TIN
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 400V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 603mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 1000 Hrs @ 85°C
Leakage Current 1.08995mA
Ripple Current 1.5A
Polarization Polar
Life (Hours) 1000 hours
Ripple Current @ Low Frequency 1.5A @ 120Hz
Ripple Current @ High Frequency 1.8A @ 50kHz
Dimensions
Diameter 35mm
Height 30mm
Height Seated (Max) 1.181 30.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
