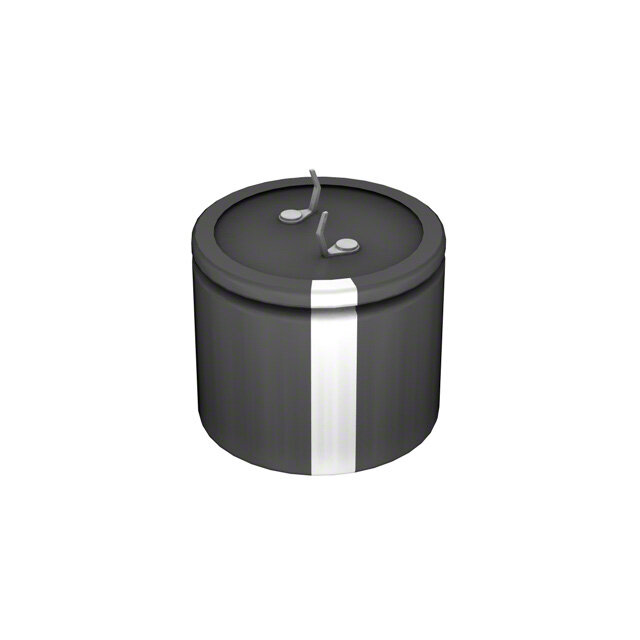

LP471M200E1P3
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR LP 200V 470muF ±20% 1.181Dia 30.00mm
PDF
/
Inventory: 7756
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 1
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2005
Series LP
Size / Dimension 1.181Dia 30.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code 8532.22.00.40
Capacitance 470μF
Voltage - Rated DC 200V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 540mOhm @ 120Hz
Working Voltage 200V
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 1000 Hrs @ 105°C
Ripple Current 1.14A
Polarization Polar
Life (Hours) 1000 hours
Ripple Current @ Low Frequency 1.14A @ 120Hz
Ripple Current @ High Frequency 1.596A @ 100kHz
Dimensions
Diameter 30mm
Height 25mm
Height Seated (Max) 0.984 25.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant

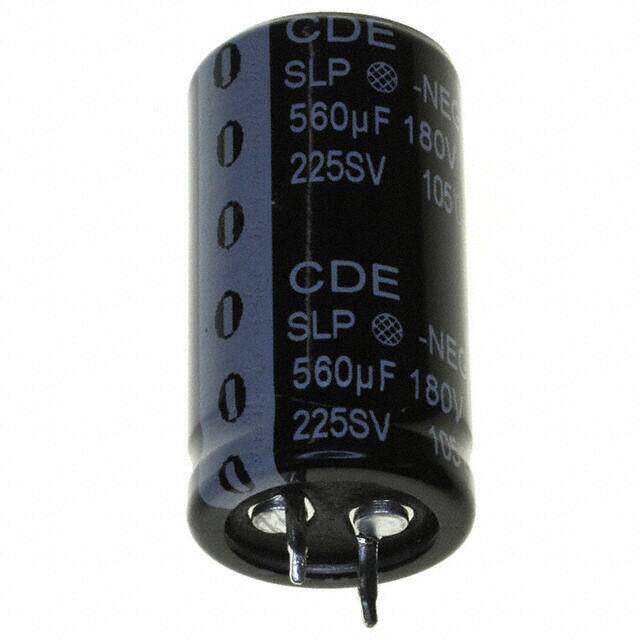

Alternative Model
