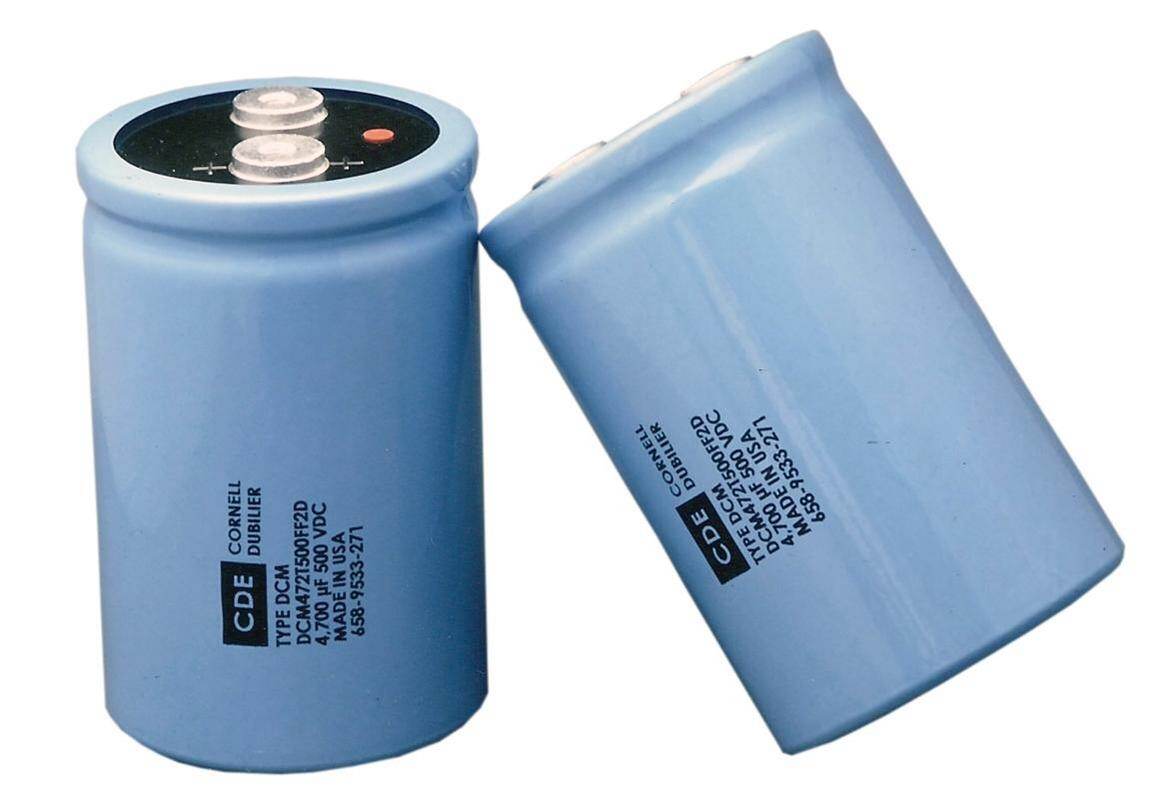

DCMC123U050AH2B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Screw Terminals
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Screw Terminals ALUMINUM ELECTROLYTIC CAPACITOR DCMC 50V 12000muF -10% +75% 1.375Dia 34.93mm
PDF
/
Buying Options
Total Price: USD $18.07
Unit Price: USD $18.0664
≥1 USD $18.0664
≥10 USD $16.64256
≥100 USD $13.124056
Inventory: 108
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 67.442mm
Height Seated (Max) 2.687 68.25mm
Diameter 35mm
Technical
Ripple Current @ High Frequency 7.504A @ 10kHz
Ripple Current @ Low Frequency 6.7A @ 120Hz
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 6.7A
Leakage Current 6mA
Lifetime @ Temp 2000 Hrs @ 85°C
Lead Spacing 0.500 12.70mm
ESR (Equivalent Series Resistance) 25.9mOhm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 12.7mm
Voltage - Rated DC 50V
Capacitance 12000μF
Applications General Purpose
ECCN Code EAR99
Termination Screw
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Tolerance -10% +75%
Size / Dimension 1.375Dia 34.93mm
Series DCMC
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material ALUMINUM (WET)
Terminal Shape BINDING POST
Surface Mount NO
Package / Case Radial, Can - Screw Terminals
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
