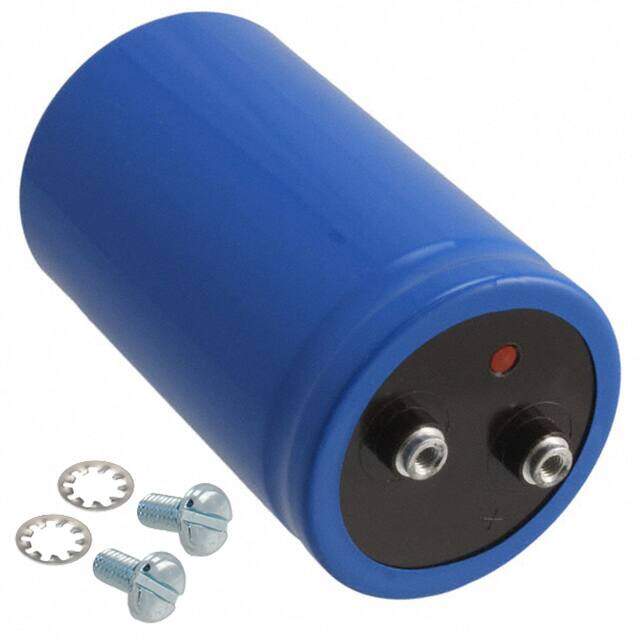

CGS443U030W3C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Screw Terminals
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Screw Terminals ALUMINUM ELECTROLYTIC CAPACITOR CGS 30V 44000muF -10% +75% 2.500Dia 63.50mm
PDF
/
Inventory: 9379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 3.125 79.38mm
Height 79.4mm
Diameter 63.5mm
Technical
Ripple Current @ High Frequency 15.21A @ 10kHz
Ripple Current @ Low Frequency 11.7A @ 120Hz
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 11.7A
Leakage Current 6.89mA
Lifetime @ Temp 2000 Hrs @ 85°C
ESR (Equivalent Series Resistance) 15mOhm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 28.6mm
Voltage - Rated DC 30V
Capacitance 44000μF
Applications General Purpose
ECCN Code EAR99
Termination Screw
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance -10% +75%
Size / Dimension 2.500Dia 63.50mm
Series CGS
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Aluminium
Number of Pins 2
Terminal Shape BINDING POST
Package / Case Radial, Can - Screw Terminals
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 16 Weeks
