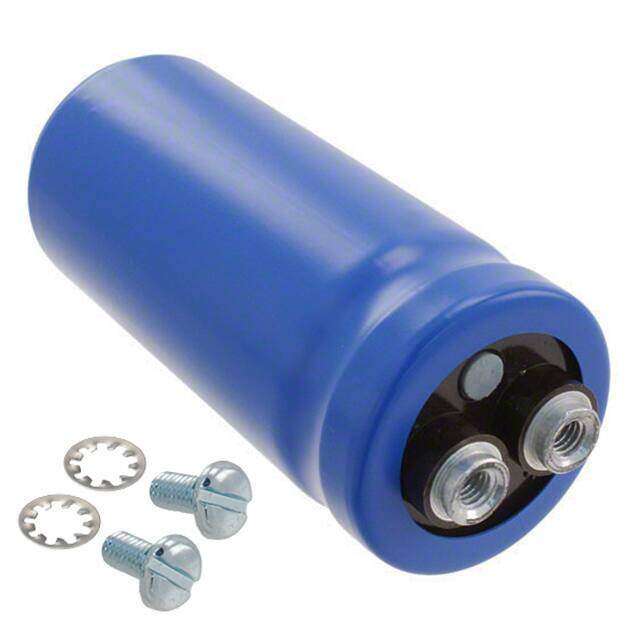

CGS302U025R2C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Screw Terminals
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Screw Terminals ALUMINUM ELECTROLYTIC CAPACITOR CGS 25V 3000muF -10% +75% 1.375Dia 34.93mm
PDF
/
Buying Options
Total Price: USD $16.35
Unit Price: USD $16.3504
≥1 USD $16.3504
≥10 USD $15.14656
Inventory: 202
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount, Clamp
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Terminal Shape BINDING POST
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series CGS
Size / Dimension 1.375Dia 34.93mm
Tolerance -10% +75%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Screw
ECCN Code EAR99
Applications General Purpose
Capacitance 3000μF
Voltage - Rated DC 25V
Lead Pitch 12.7mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 235mOhm @ 120Hz
Lead Spacing 0.500 12.70mm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 1.64mA
Ripple Current 1.8A
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 1.8A @ 120Hz
Ripple Current @ High Frequency 2.34A @ 10kHz
Dimensions
Diameter 35mm
Height 54mm
Height Seated (Max) 2.125 53.98mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
