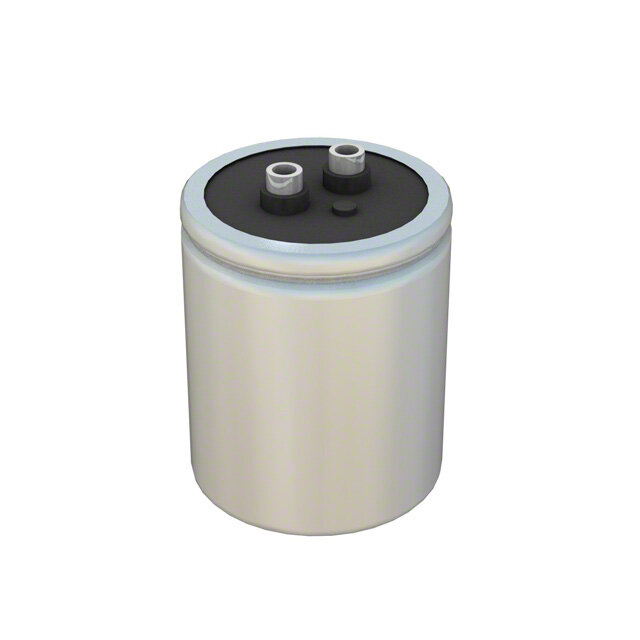

CGR492U030U2C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Screw Terminals
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Screw Terminals ALUMINUM ELECTROLYTIC CAPACITOR CGR 30V 4900muF -10% +75% 1.750Dia 44.45mm
PDF
/
Inventory: 6943
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 2.125 53.98mm
Height 54mm
Diameter 44.5mm
Technical
Ripple Current @ High Frequency 11.845A @ 10kHz
Ripple Current @ Low Frequency 10.3A @ 120Hz
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 10.3A
Leakage Current 0.882mA
Lifetime @ Temp 2000 Hrs @ 105°C
ESR (Equivalent Series Resistance) 25mOhm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 19mm
Voltage - Rated DC 30V
Capacitance 4900μF
Applications General Purpose
ECCN Code EAR99
Termination Screw
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance -10% +75%
Size / Dimension 1.750Dia 44.45mm
Series CGR
Published 2005
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Dielectric Material Aluminium
Terminal Shape BINDING POST
Package / Case Radial, Can - Screw Terminals
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 16 Weeks
