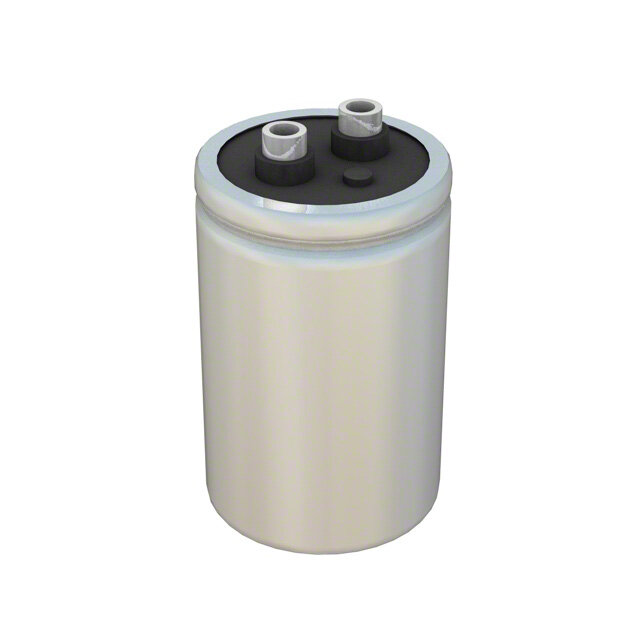

CG232U035R2C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Screw Terminals
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Screw Terminals ALUMINUM ELECTROLYTIC CAPACITOR CG 35V 2300muF -10% +75% 1.375Dia 34.93mm
PDF
/
Buying Options
Total Price: USD $13.76
Unit Price: USD $13.764444
≥1 USD $13.764444
≥200 USD $5.327748
≥500 USD $5.140004
≥1000 USD $5.048101
Inventory: 6620
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Terminal Shape BINDING POST
Dielectric Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2005
Series CG
Size / Dimension 1.375Dia 34.93mm
Tolerance -10% +75%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Screw
ECCN Code EAR99
Applications General Purpose
Capacitance 2300μF
Voltage - Rated DC 35V
Lead Pitch 12.7mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 51mOhm @ 120Hz
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 0.85118mA
Ripple Current 3.8A
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 3.8A @ 120Hz
Ripple Current @ High Frequency 4.37A @ 10kHz
Dimensions
Diameter 35mm
Height 54mm
Height Seated (Max) 2.125 53.98mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
