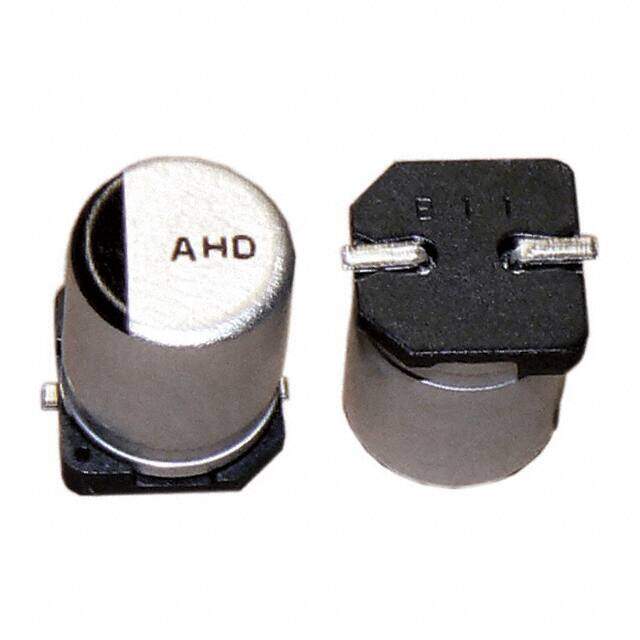

AHD336M50F24B
RoHS
/
Package Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR AHD 50V 33muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.911153
≥1 USD $0.911153
≥200 USD $0.363673
≥500 USD $0.351857
≥1000 USD $0.345293
Inventory: 8466
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 8.3mm
Length 10mm
Height Seated (Max) 0.402 10.20mm
Height 10.2mm
Diameter 8mm
Technical
Ripple Current @ High Frequency 125.8mA @ 10kHz
Ripple Current @ Low Frequency 74mA @ 120Hz
Impedance 1.5Ohm
Tan Delta 0.14
Life (Hours) 5000 hours
Polarization Polar
Ripple Current 74mA
Leakage Current 0.0165mA
Lifetime @ Temp 5000 Hrs @ 105°C
Size Code 3933
ESR (Equivalent Series Resistance) 7Ohm @ 120Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Reach Compliance Code unknown
Voltage - Rated DC 50V
Capacitance 33μF
HTS Code 8532.22.00.20
Applications General Purpose
Terminal Finish Tin/Lead (Sn95Pb5)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series AHD
Published 2005
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Surface Mount Land Size 0.327Lx0.327W 8.30mmx8.30mm
Dielectric Material Aluminium
Terminal Shape ONE SURFACE
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Mount Surface Mount
