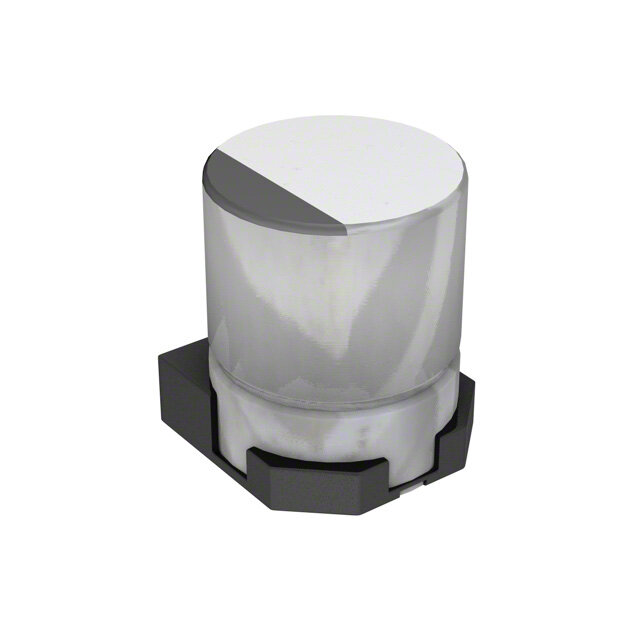

AFC226M16C12T
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR AFC 16V 22muF ±20% 0.197Dia 5.00mm
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.292829
≥1 USD $0.292829
≥200 USD $0.116848
≥500 USD $0.112936
≥1000 USD $0.111019
Inventory: 2218
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM (WET)
Surface Mount Land Size 0.209Lx0.256W 5.30mmx6.50mm
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2006
Series AFC
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn95Pb5)
Applications Automotive, Bypass, Decoupling
Capacitance 22μF
Voltage - Rated DC 16V
Packing Method TR, 15 INCH
Lead Pitch 1.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 12.1Ohm @ 120Hz
Size Code 2621
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 3.5μA
Ripple Current 95mA
Polarization Polar
Life (Hours) 1000 hours
Impedance 1.8Ohm
Ripple Current @ Low Frequency 71.25mA @ 120Hz
Ripple Current @ High Frequency 95mA @ 100kHz
Dissipation Factor 0.16 %
Dimensions
Diameter 5mm
Height 6.5mm
Height Seated (Max) 0.217 5.50mm
Width 5.3mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
