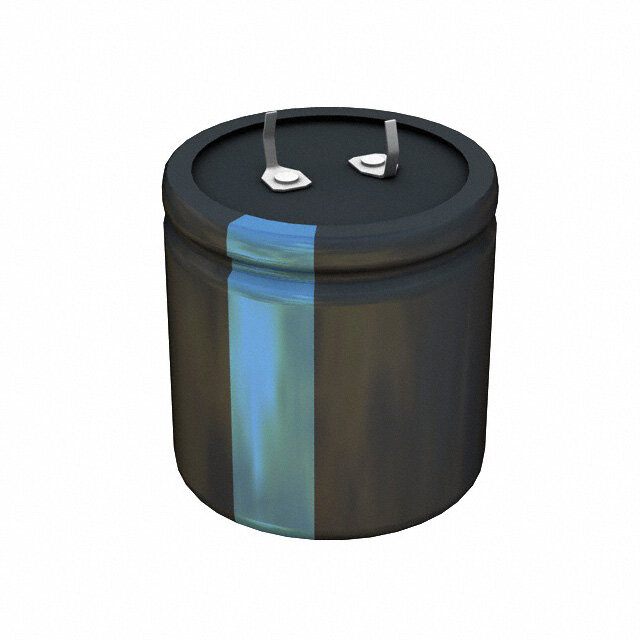

380LQ182M200A032
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR 380LQ 200V 1800muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 7002
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 2
Dielectric Material Aluminium
Weight 56.699046g
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series 380LQ
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 1800μF
Voltage - Rated DC 200V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 120mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 1.8mA
Ripple Current 4.32A
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 4.32A @ 120Hz
Ripple Current @ High Frequency 6.05A @ 20kHz
Dimensions
Diameter 35mm
Height 35mm
Height Seated (Max) 1.457 37.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
