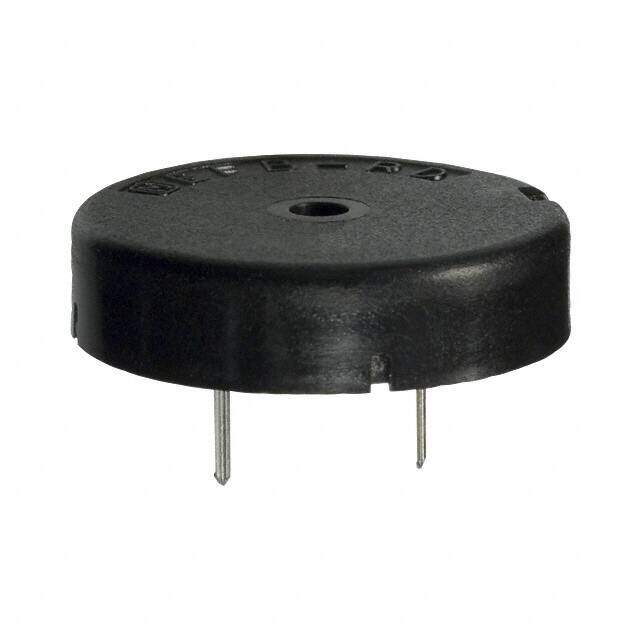

EFB-RD24C411 image
Favorite
EFB-RD24C411 image
Favorite
RoHS
/
Package /
Category Audio Products / Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 30V TH
PDF
/
Inventory: 3842
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole

Technical

Operating Temperature -10°C~60°C
Packaging Bulk
Published 2002
Series EFB
Size / Dimension 0.945Dia 24.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature 60°C
Min Operating Temperature -10°C
Voltage - Rated 15V
Capacitance 10nF
Technology Piezo
Frequency 4kHz
Operating Mode Single Tone
Input Type Peak-Peak Signal
Voltage Range 30V Max
Washable No
Port Location Top
Sound Pressure Level (SPL) 85dB @ 15V, 10cm
Driver Circuitry Transducer, Externally Driven

Dimensions

Height 8mm
Height Seated (Max) 0.315 8.00mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Lead Free
