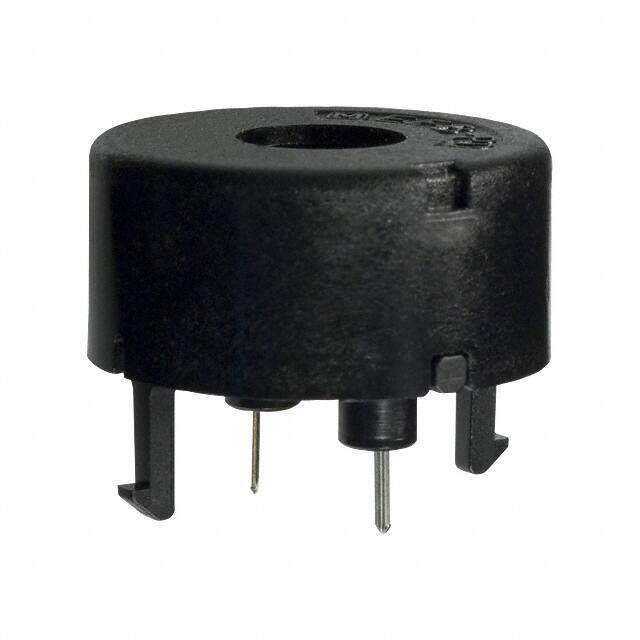

EFB-RD22C415
RoHS
/
Package /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO PIEZO TRANSDUCER 30V TH
PDF
/
Inventory: 8062
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Height Seated (Max) 0.413 10.50mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 98dB @ 15V, 10cm
Port Location Top
Voltage Range 30V Max
Input Type Peak-Peak Signal
Operating Mode Single Tone
Frequency 4kHz
Technology Piezo
Voltage - Rated 15V
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.866Dia 22.00mm
Series EFB
Published 2002
Packaging Bulk
Operating Temperature -10°C~60°C
Physical
Mounting Type Through Hole
