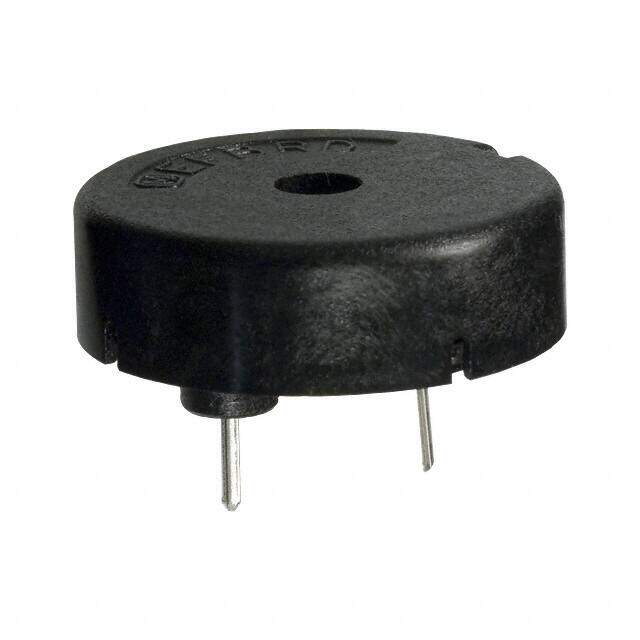

EFB-RD22C41
RoHS
/
Package /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO PIEZO TRANSDUCER 30V TH
PDF
/
Buying Options
Total Price: USD $3.99
Unit Price: USD $3.991216
≥1 USD $3.991216
≥200 USD $1.592548
≥400 USD $1.540032
≥1000 USD $1.513774
Inventory: 6433
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.374 9.50mm
Height 9.5mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 85dB @ 15V, 10cm
Port Location Top
Washable No
Voltage Range 30V Max
Input Type Peak-Peak Signal
Operating Mode Single Tone
Frequency 4kHz
Technology Piezo
Capacitance 15nF
Voltage - Rated 15V
Min Operating Temperature -10°C
Max Operating Temperature 60°C
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.866Dia 22.00mm
Series EFB
Published 2002
Packaging Bulk
Operating Temperature -10°C~60°C
Physical
Mounting Type Through Hole
Mount Through Hole
