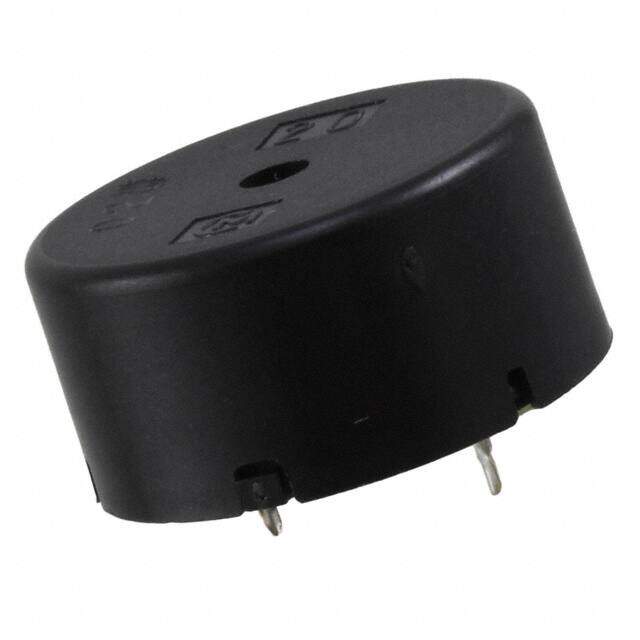

PKM22EPPH2002-B0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
Audio Indicators & Alerts 70DB 2.00KHZ 22.0MM ALARM(R)
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.49104
≥100 USD $0.459008
≥500 USD $0.435424
≥1000 USD $0.412368
≥3000 USD $0.387059
Inventory: 664
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.492 12.50mm
Height 10.8mm
Diameter 22mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 70dB @ 1.5V, 10cm
Port Location Top
Washable No
Self Resonant Frequency 2kHz
Voltage Range 30V Max
Nominal Input Voltage 3V
Input Type Zero-Peak Signal
Operating Mode Single Tone
Max Supply Voltage 30V
Frequency 2kHz
Technology Piezo
Voltage - Rated DC 25V
Voltage - Rated 1.5V
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.866Dia 22.00mm
Series PK
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 4 weeks ago)
Factory Lead Time 10 Weeks
