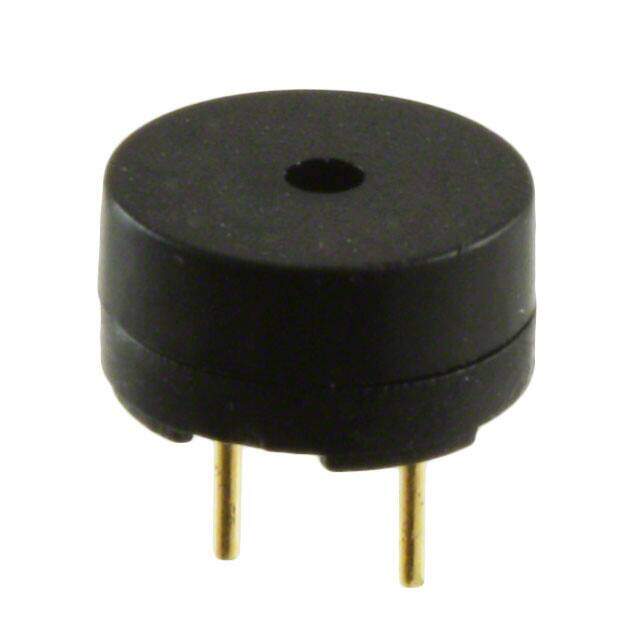

CST-951AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO MAGNETIC XDCR 4-6V TH
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
≥10 USD $0.65912
≥100 USD $0.610368
≥500 USD $0.57486
≥1000 USD $0.540654
≥3000 USD $0.466039
Inventory: 1366
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 5mm
Diameter 9mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Port Location Top
Washable No
Self Resonant Frequency 2.73kHz
Sensing Method Magnetic
Voltage Range 4V~6V
Current - Supply 80mA
Input Type Zero-Peak Signal
Operating Mode Single Tone
Operating Supply Current 80mA
Frequency 2.73kHz
Technology Magnetic
Voltage - Rated 5V
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.354Dia 9.00mm
Series CST
Published 2011
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Weight 600mg
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
