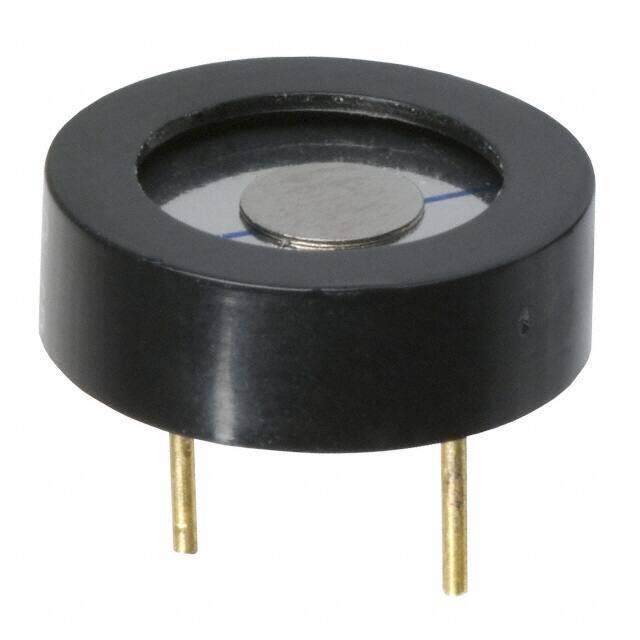

CSQ-601BP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO MAGNETIC XDCR 1-2V TH
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.5984
≥1 USD $0.5984
≥10 USD $0.5016
≥100 USD $0.464992
≥500 USD $0.43802
≥1000 USD $0.411954
≥3000 USD $0.35508
Inventory: 649
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.236 6.00mm
Height 6mm
Diameter 12mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 70dB @ 1.5V, 10cm
Port Location Top
Washable No
Self Resonant Frequency 2.05kHz
Voltage Range 1V~2V
Input Type Zero-Peak Signal
Operating Mode Single Tone
Operating Supply Current 35mA
Frequency 2.048kHz
Technology Magnetic
Voltage - Rated 1.5V
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.472Dia 12.00mm
Series CSQ
Published 2011
Packaging Tray
Operating Temperature -20°C~60°C
Physical
Weight 1.2g
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
