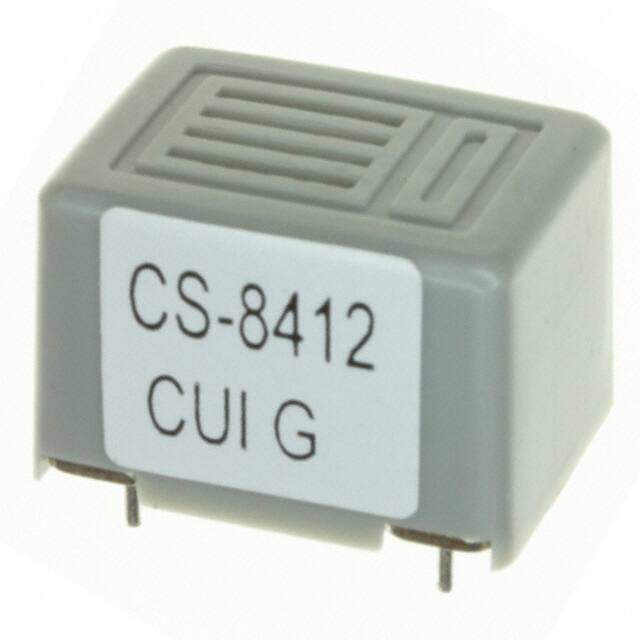

CS-8412
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO MAGNETIC IND 8-16V TH
PDF
/
Buying Options
Total Price: USD $3.54
Unit Price: USD $3.53743
≥1 USD $3.53743
≥10 USD $3.337198
≥100 USD $3.14829
≥500 USD $2.970096
≥1000 USD $2.801977
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Operating Temperature -20°C~60°C
Packaging Tray
Published 2005
Series CS
Size / Dimension 0.886Lx0.657W 22.50mmx16.70mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Voltage - Rated 12V
Technology Magnetic
Operating Supply Current 30mA
Operating Mode Single Tone
Input Type DC
Current - Supply 30mA
Voltage Range 8V~16V
Sensing Method Magnetic
Washable No
Port Location Top
Sound Pressure Level (SPL) 77dB @ 12V, 30cm
Driver Circuitry Indicator, Internally Driven
Dimensions
Height 16mm
Height Seated (Max) 0.630 16.00mm
Length 22.5mm
Width 16.7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
