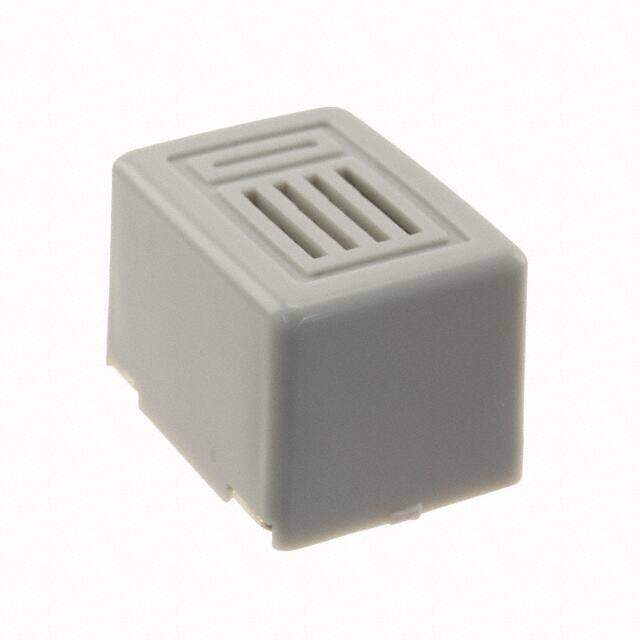

CS-3224
RoHS
/
Package /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO MAGNETIC IND 20-28V TH
PDF
/
Buying Options
Total Price: USD $4.59
Unit Price: USD $4.591211
≥1 USD $4.591211
≥200 USD $1.832808
≥500 USD $1.771102
≥1000 USD $1.740905
Inventory: 8141
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Number of Pins 2
Technical
Operating Temperature -20°C~60°C
Packaging Bulk
Published 2007
Series CS
Size / Dimension 0.886Lx0.657W 22.50mmx16.70mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Voltage - Rated 24V
Technology Magnetic
Operating Supply Current 20mA
Operating Mode Single Tone
Input Type DC
Current - Supply 20mA
Voltage Range 20V~28V
Sensing Method Magnetic
Port Location Top
Sound Pressure Level (SPL) 76dB @ 24V, 30cm
Driver Circuitry Indicator, Internally Driven
Dimensions
Height 16mm
Height Seated (Max) 0.630 16.00mm
Length 22.5mm
Width 16.7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
